Building The Bathroom

08 Jul 2022 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , , , , ,

After finishing the bedrooms, we directed our attention next on the bathroom. We had a corner tub already, which we found for sale on the side of the road a few years previous for $200. The tub had been sitting in the forest and consequetly needed a good cleaning before we wrestled it up the stairs and into the space. Because of this affordable find, we had to redesign the bathroom somewhat since we had originally assumed we would have a regular rectangular tub. In fact, having this larger corner tub really simplified the arrangement of the space and probably saved us a bunch of time.

Building the frame for the corner tub. We also packed insulation around the underside so the water stays hot longer!

The main job involved in finishing the bathroom at this point was tiling. We obtained a certain amount of black slate tiles, mostly 1×2 foot tiles, and some scraps, from a friend’s leftover project. We weren’t sure if it would be enough tile, especially now that our corner tub redesign added more area that needed to be tiled, but another friend of ours who came visiting one day was excited to give us 100 square feet of almost exactly the same tile that he was no longer going to use at his place! It had a slightly different texture and colour, but was close enough to hardly tell at all. We hired Keith, a local tiler, because at this point, having speed, tools, and expertise sounded way better than our old ways of fumbling through these things ourselves. Since our job was relatively small, Keith even used up a bunch of scraps of backing board from other jobs.

We already had a basic sink from the recycling depot here, but another old friend noticed that we had used Mexican Talavera tiles around the base of our woodstove, and offerred us a hand painted Mexican sink which she just had hanging around her place… it is such a beautiful and perfect addition! We were planning on using the same Talavera tiles as the backsplash in the bathroom, and now the artistry and colour of the sink and tiles really looks amazing and lively with the neautrality of the black slate and white walls.

Gifted hand painted Mexican sink and talavera tiles purchased online from Mexico, black slate counter top and mahogany trim

Colin trimmed everything out with the mahogany that we obtained through a work trade 17 years ago, and which has become all the window sills in the bedrooms. The toilet* was installed in a little nook, with the wall of the shower on one side, and a framed linen closet on the other, which doubles as a hide away for some awkward venting pipes which coming through from the utility room. We used all the low grade t&g cedar for the walls around the toilet and cupboard, and added the multi-toned blue and grey theme on the wall of the bathroom around the door. Both the cupboard door and the main door are solid wood doors reclaimed from an old house that Colin’s Dad had in his salvaged collection for a long time. They came complete with the old fashioned glass door knobs.

The final plaster is one of the last things to be done. Tracy and I spent one lovely day mixing a small batch of natural clay plaster, the same as in all the rest of the house, and did the bathroom and the mud room. Little by little, our slow house building project was coming together.

The bathroom counter and drawers were built with the aid of our carpenter friend Pete, who also did all the kitchen units. We used yellow cedar for the frames (from the material left over for the windows) with the same blue and grey cedar inside them, and the green frog handles were purchased 5 years ago from the clearance bin at Lee Valley. At the time, we made a very imagined estimate of how many handles we might need for all the doors and cupboards in the house. We were one short. Luckily, the clearance bin still had frogs.

The bathroom really seems to be a small story full of serendipity, friendship, patience, salvaging, flexibility, and persistence. We didn’t have everything figured out and planned ahead of time. We found what we needed and made it work. We stayed open to change. We were not fixed on a certain outcome. Materials showed up, sometimes from over many many years. The bathroom has become my favourite room, especially in the morning with the main window on the eastern side.

*One thing I highly recommend for the bathroom- a bidet! We purchased a simple add-on bidet (Tushy!) and absolutely love it. Wayyyyy less toilet paper which is such a bonus for the septic system. Also for the trees. We use pieces of cloth for drying and just wash them.

First Plaster Layers

29 Jan 2018 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , , ,

With the baling done by September, our goal was to get the first layer of plaster on the bales before the winter rains began.  Plastering has to be done while the weather is still suitable for quick drying, since it is not advisable to have wet clay against the straw for long enough to develop mould.  The faster it dries, the better.  Because it was September when we started, we decided to make this first layer no thicker than 1/2 inch.  If it had been June, we would have taken the seasonal opportunity to fill the dips, which would mean much thicker plaster in some areas.  However, we will probably go around in the spring and add plaster just to the places that are dippy, so the next layer will begin to smooth out the surface of the walls.

Once the baling was done, there commenced the job of stuffing.  This entails going over each wall and looking for spaces that push through the bales, generally where one bale meets up against another bale.  All along the tops of the bales needed stuffing, and sometimes where the framing separates the bales.  Tucking in tight little twists of straw to fill these places becomes methodical but doesn’t take too much time.

After that, comes the messy job of applying clay slip to all exposed straw.  We collected waste clay trimmings from a pottery studio, and soaked it in buckets so it becomes soft and scoopable.  Then we mixed it with more water to dilute it to a thick chocolate milk consistency, using a paddle mixer.  It was thick enough to not drip very much off a dip stick.  I created a little wearable square bucket to hold the slip while I slapped it on the bales with a big brush and a gloved hand.  The bucket, equipped with old belts that went over my shoulders, could catch any excessive dripping and free up both my hands to massage the slip onto the straw.  It dries a much lighter colour of pink.

Then came plastering!  We used local clay from an excavation job on the island, pitt run sand, (also from the island) and all that straw we collected from the bale trimming.  We built a soaker pit from damaged straw bales, lining it with tarps and then filling it with clay and water to make it soft.  On tarps, we mixed 4 or 5 shovels of the soaked clay with 10 shovels of sand by rolling the tarps around and then foot mixing, adding water as we went to get a good consistency without allowing the mix to be sloppy.  Adding a few handfuls of straw (equivalent to 2 or 3 shovels)  soaked up a bit of water, so sometimes we would add a bit more if it became too stiff.  The test is to make a ball, and not have it ooze or slop, but also not have it be too stiff and crumbly.  The other test often comes from actually applying it, and becoming used to the ideal consistency while working with it.  The hands on experience of plastering generally becomes the best way to really learn!  We had to adjust things as we went- our ratios changed as we dug into our clay pile and found less high quality clay.  We noticed that our mixes were more silty, difficult to apply, and orange in hue instead of blue/grey.  It was a subtle change as we filled the soaker pit, but after a few mixes we realized we needed to amend our clay from a different pile we had saved.  (After so many years of natural building, we have all sorts of little and big piles of resources hanging around!)

The clay slip gets sprayed with water before applying the plaster, just lightly, not so that water runs down the wall but the slip turns darker in colour.  A handful of plaster is then smeared onto the wall with the heel of the hand, and massaged in so that it doesn’t peel back off.  Everyone finds their own method, but the important thing is that it isn’t too thick, or too thin, ideally the same thickness, and it doesn’t peel off! Our first group of plasterers were my son’s school class, a group of 24 kids ages 10-14.  They spent a whole day rotating in groups between mixing, plastering, and hiking around our part of the island while birding and geo-caching.  They got so much done!  We also had a visitor staying with us for two weeks, learning all the steps of plastering.  For the next month, we had a variety of friends and community people coming by for a few hours or a day to get their hands muddy on our walls.

Partially dried wall

We focused first on the north walls, and the places where there is less sunlight and wind movement.  Then we moved to the inside when the weather got rainier in October.  Luckily, the fall was generally sunny late into November, so when we finally got to the south walls, the warm sun was still shining most days.  We used a fan to help dry out some of the inside walls that weren’t getting much sun.

plaster over clay slip with insulation at the top covered with metal lath

Plastering the bales in this build was different than the last house we did because the bales were oriented differently- instead of placed like bricks and plastering the sides of the bales we have stood the bales up and plastering the faces of the bales, where the strings are.  In the last build, we trimmed the entire bale walls, shaping the curves of the windows and removing any shaggy straw, so the plaster went onto the evenly cut ends of the straw.  This time, we couldn’t do any trimming because of the baling twine, and the plaster went onto the length of the straw.  While we didn’t need to take the extra step of trimming, it was a little more challenging to apply the plaster.  The walls are more lumpy and will need some extra work in the plastering to get a nice smooth wall.  Smooth walls, of course, are a matter of aesthetic preference over function.  Maybe in the end we will incorporate more creative sculptural elements into our walls.

first coat plastered dried. Burlap will be plastered into the next layer of plaster.

This winter will be a time for these seed ideas to take root while the house building projects are on hold.  We can take some time to sit in the house and imagine the different possibilities for the next phases.  It can be frustrating at times to have to be patient, but often the results come with better decisions and a renewed sense of creativity following the flurry of building.

If you read all this and want to see more photos and more descriptions of plastering, please refer to my previous post on the last house we did~ Natural Plaster

Workshop Update

25 May 2013 4 Comments

by inspirationalvillage in Natural Building Tags: , , , , , , , ,

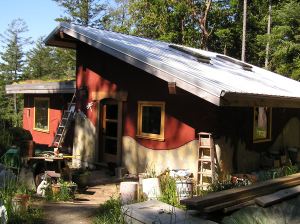

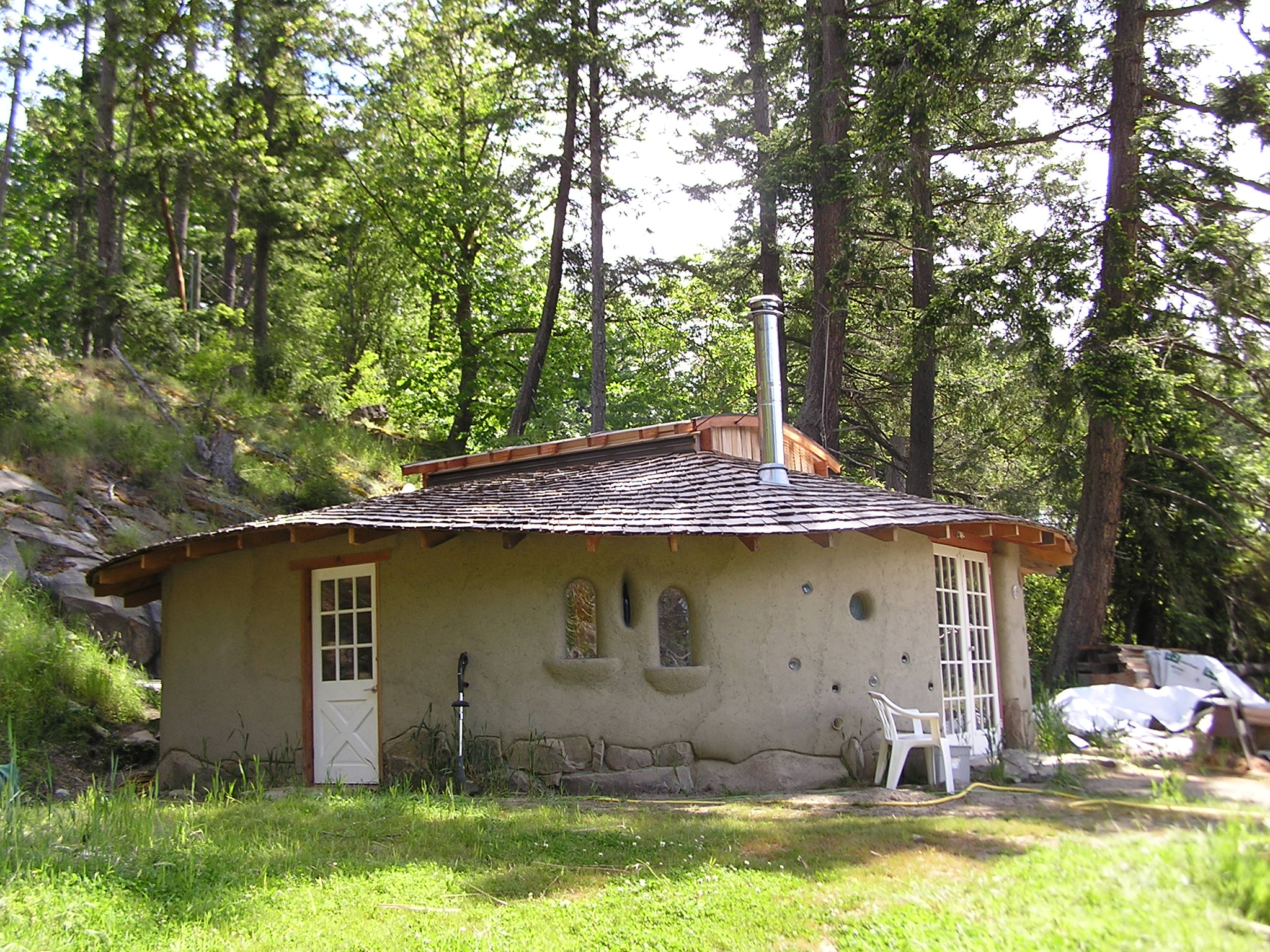

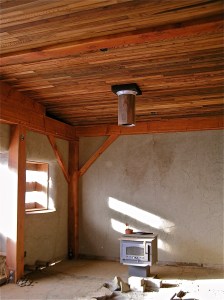

cob workshopThings have been progressing slowly but steadily in the workshop since we finally got the roof finished in the winter.

Colin focused on getting the doors in right away, refining two old doors that came from his Dad’s work of deconstructing old houses on the island, and refitting a pair of salvaged french doors.  He also built a raised stone hearth from the pile of stones we have on the property, put in the stove pipe, and wired in the rough electrical circuits.  We got the insulation in the ceiling and the plastic vapour barrier secured over that and ready for the finished ceiling layer, which we think will be some kind of bamboo or sea grass mat.

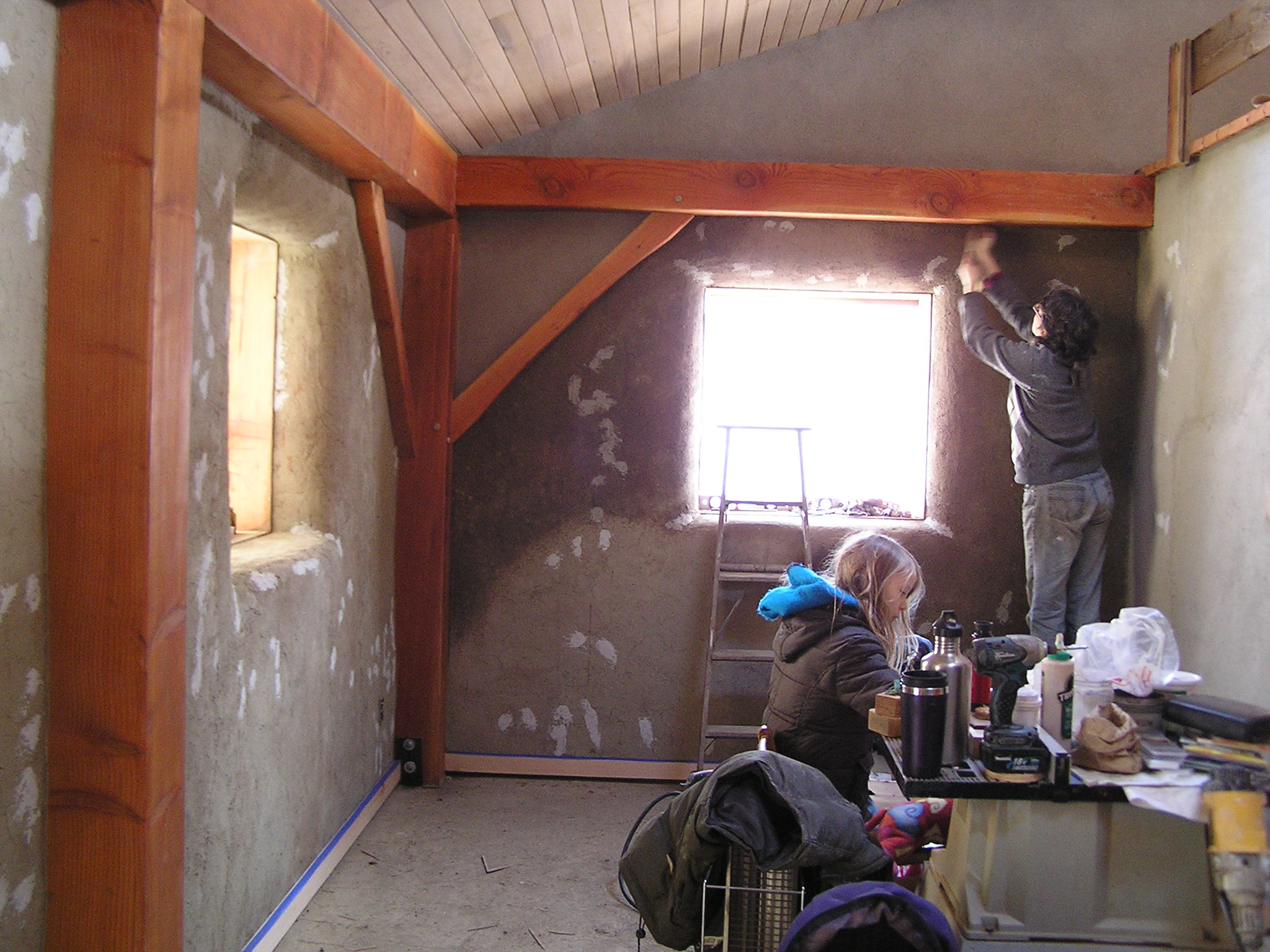

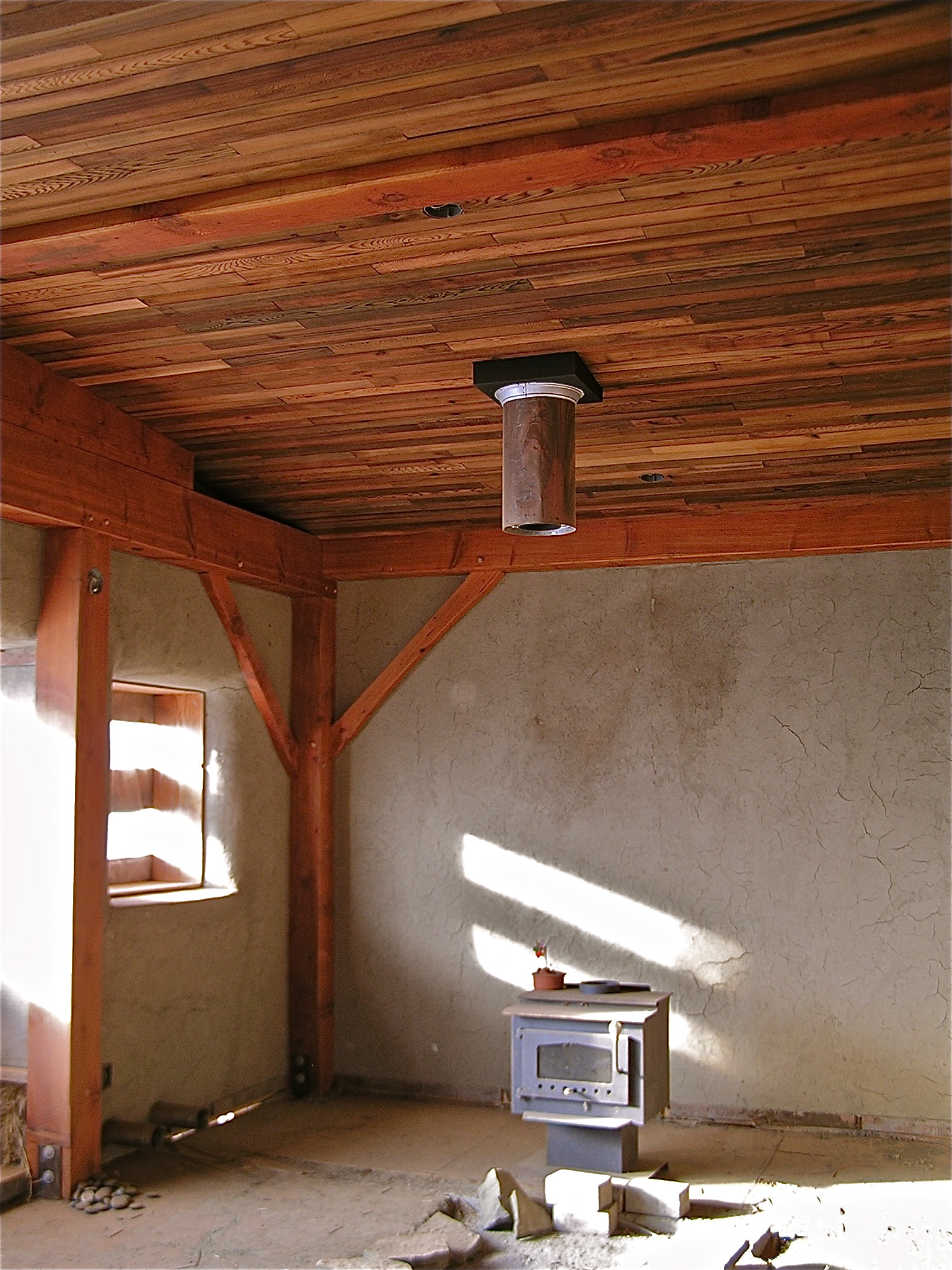

rough sculptureI spent a couple of weeks on and off getting the rough coat of plaster on the inside and outside of the building.  This layer of clay plaster is the only rough coat needed on a cob wall, and is the same layer as the third layer that we put on the strawbale house.  (See my previous post called Natural Plaster for full details).  A mix of 4 parts sand, 2 parts clay, and 1 part straw with water to mix it to a troweling consistency kept me busy in the warmer days of late winter. rough plastered windows I cleaned up and shaped the sculptural aspects of the walls so they were ready for the final layer of plaster, which Tracy and I completed earlier in May, while the temperatures were still cool enough to give the plaster time to dry.  The final clay plaster took us 2 days to put on, a seemingly record pace for any one job to be completed in.  We mixed up the kaolin clay, sand, straw, paper pulp and whiting in the buckets the day before, and then added the rice flour paste, and borax and mixed multiple buckets together the morning we started plastering.  (See my older post Final Plastering for more exact details).  We got much of the simple walls done on the first day, then completed the wall with the windows and arched shelf the next day, cleaning up our tools by the afternoon.  I am always so amazed at how quickly the finishing layer goes, compared to the time it takes to get all the other layers beneath it built.final plaster

Last weekend, Colin and I built the one interior wall that separates the workshop from a small storage room.  It will also be the wall against which will be built Colin’s work bench.  It holds the majority of the electrical outlets and is a standard 2×4 construction filled with rock wool (Roxul) insulation and covered in plywood.  final plastered windows

There is not too much left to do in this simple building for Colin to finally move in and use the space for his wood working.  Right now he is coming to the end of a giant stone facing job and is looking forwards to working with the more forgiving medium of cedar wood.  I can turn my attention to finishing the outside of the building later this summer, playing with some creative designs for sculpture as well as getting the last coat of lime plaster done when the weather begins to cool off once again.     interior wall

Final Lime Plaster

06 Nov 2012 5 Comments

by inspirationalvillage in Natural Building Tags: , , , , ,

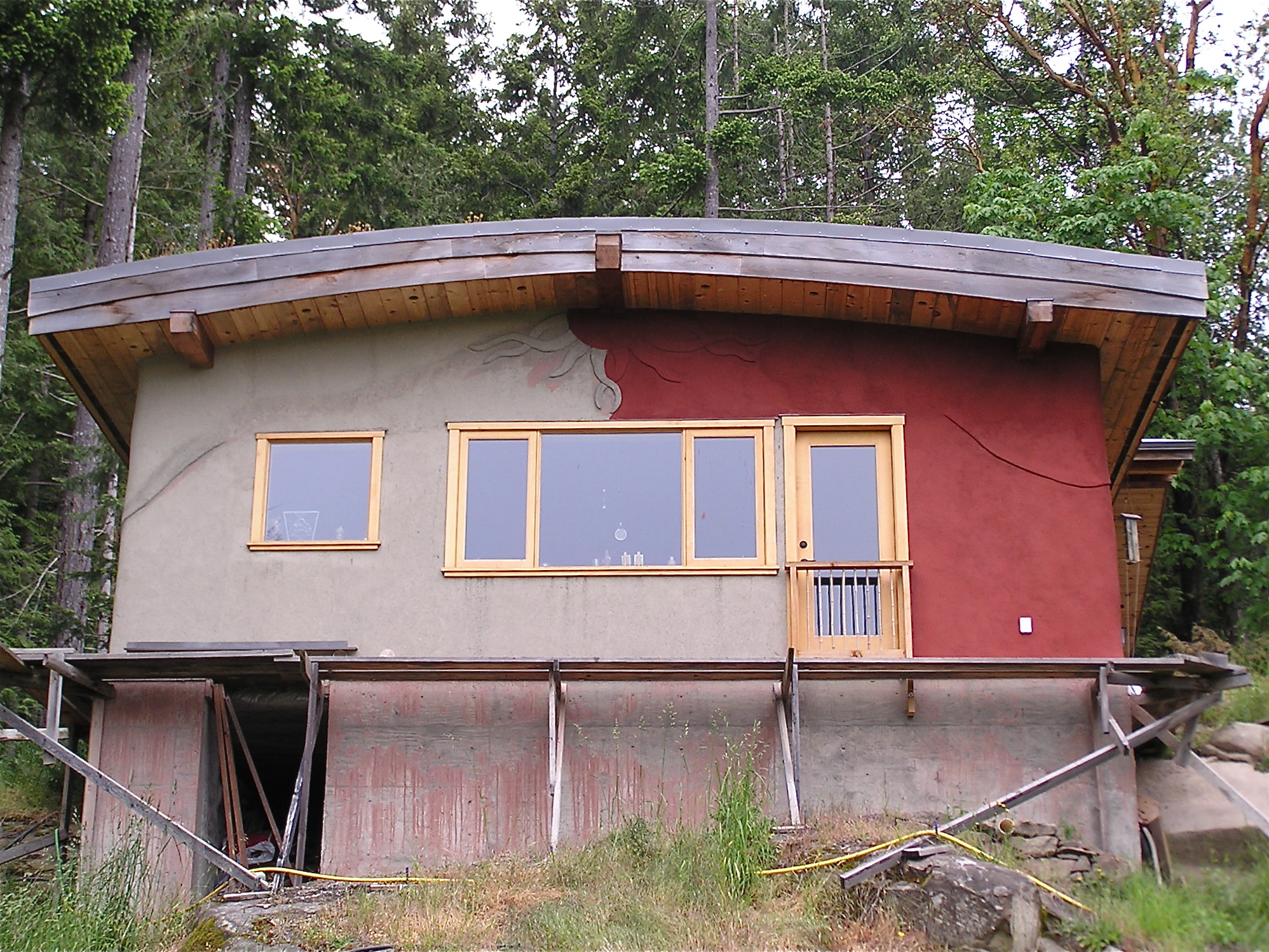

Back in May (2011) we decided to get going on the final lime plaster of the outside of the house before the business of summer cob building took over.  Lime prefers to have cooler temperatures in which to dry, and requires much more attention to the timing of the drying process for a result of eveness of colour and trowel lines.  Much like the process of applying the cayolin clay plaster on the inside, lime needs to be troweled on continually until a whole section can be completed, otherwise an apparent line will be visible where the plaster dried too fast, or where troweling stopped.  There are techniques to make these lines look less visible if whole big sections are difficult to complete in one go at it. We added a beveled line that undulates around the house, dividing the wall into smaller sections and providing a place for us to stop.  That way we were able to plaster only the top section, and then only the bottom, and have the line of plaster meet under the bevel and so be hidden.

moving along in a team of three

Working with three people who are competent with the job is important.  Fixing spots as you go, running out of plaster when you need it, and being too late for the sponging part of plastering is stressful.  So is having the sun come out unexpectedly and not being able to stop to find a way of shading the work space.  Likewise, having lunch, snacks, and drinks being made available while working is a huge bonus in making lime plastering a smooth and fun thing to do.

getting those mixing muscles flexing

The right tools are also necessary.  We used Japanese trowels, hawks (easy to make-plywood board with a handle on one side), just like with the interior plaster, and mixed the plaster in 5 gallon buckets and then in a large tub for uniform colour and consistency.  A powerful drill with a paint mixer attached, measuring spoons and cups (depending on colour pigment used), a spatula, and big scooper are helpful to have on hand.  Ladders or scaffolding should be close by for high parts.

The ingredients are simple- hydrated lime, stucco sand, water, and colour pigment.  We soaked the lime in a big barrel a few weeks in advance.  We also did many colour samples using a one litre mix, adding pigments in increments of tablespoons to get an array of shades and colour blends.  We have many beautiful arbutus trees framing the house, and we wanted to make a colour that brought out a reflection of the deep red/orange/brown that we see in the twisting branches.  We also thought that such a colour would bring out the vibrant yellow of the yellow cedar window frames.  Red pigment, however, has pink tendencies, and so we ended up using ten tablespoons of red in a one litre mix, plus five tablespoons of chestnut brown.  Multiplying that up to 4 gallons in a bucket, and we were deep into a large quantity of pigment.  We ordered what we thought would be enough for the whole house, based on calculations for the area covered per bucket on the inside, but discovered partway through the job that we had only enough for just over half the house.  We spent way more money on colour pigment than we ever expected, but we were committed to the colour.  Lesson #1: estimating for natural plasters is difficult, and calculating for colour pigments is even more complicated.  Lesson #2: find a good source of affordable, bulk colour pigments.  Because we were pushing to get this job done while the weather was still cool, we just walked in to a concrete supply store and bought mortar pigments that come in small bags.  When we discovered just how much we would need, we didn’t want to take the time to find a different source because different pigments have different colour shades.  We would have needed to do the colour sampling all over again.  By the time we ran out and needed more though, I was very much wishing that we had.  However, in the end we spent about $800 in the final outside layer (incl. lime and sand), and compared to other forms of siding or paint, we have a beautiful plaster that soaks in to the landscape, accentuates the curves of the bales and the coziness of the forest, for probably less money in the end.

The very first thing we had to do, before any of the plaster went on, was to add the sculptural elements to the rough coat.  Elemental it was, too – the aspect of the house is situated very close to the four directions, and we wanted to acknowledge the directions and the elements on each side of the house.

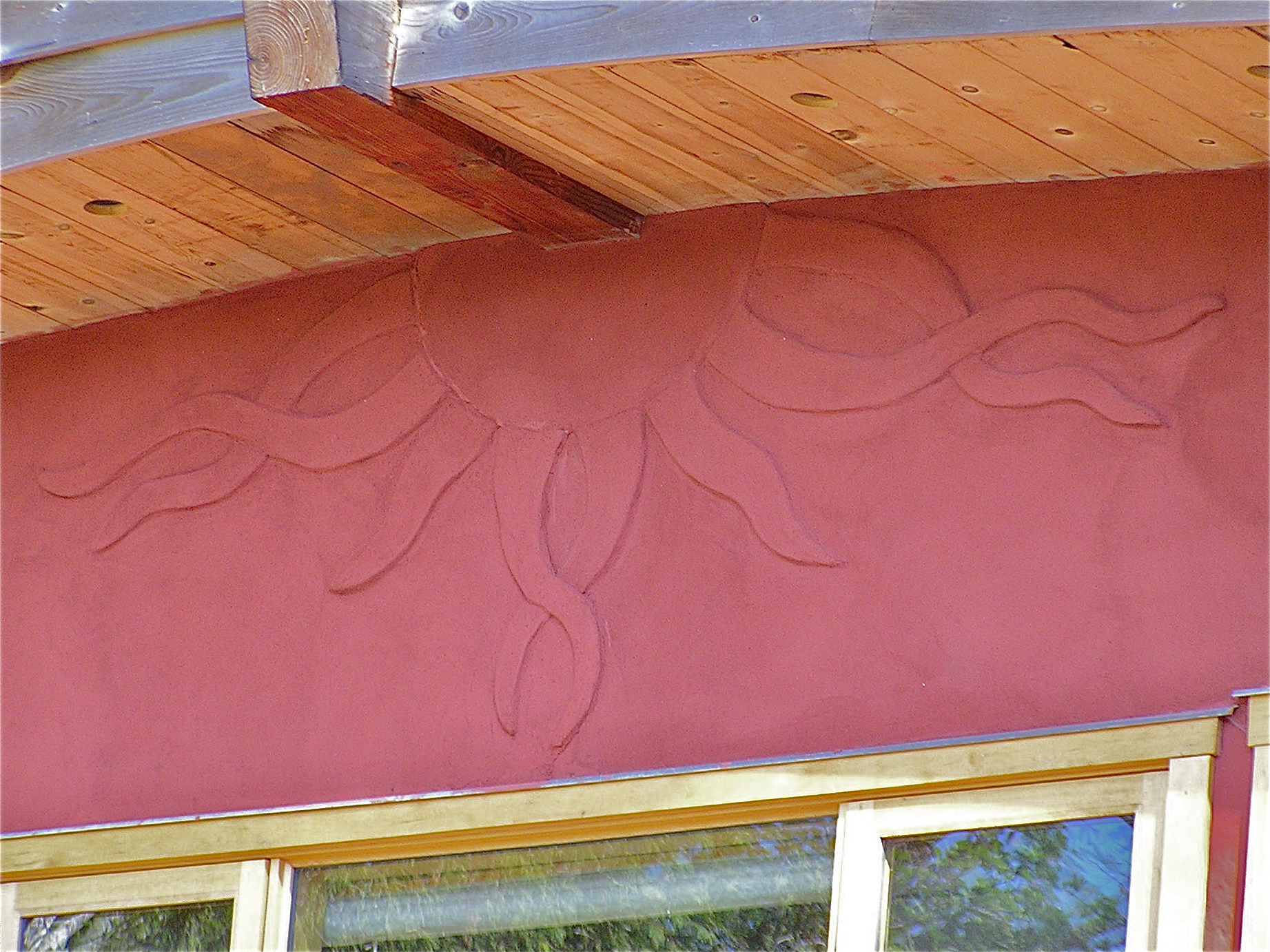

south sun

We sculpted a large sun on the south side for fire, and a water lily on the west side for water.  My mom got to work on sculpting a tree on the north side for earth, and I placed two dragonflies on the east wall under the light that shines beside the front door for air.  Our beveled relief line that undulates through the middle of the wall flows through each of the elemental sculptures and adds a subtle shadow line.  The sculptures were made using the same mix as was used for the brown coat of the walls- 1 part clay, 2 parts sand, and 1 part chopped straw.  Fine sand and clay sifted free of rocks makes the plaster easier to shape.  We also wet down the wall and spread clay slip over the area to help with adhesion.

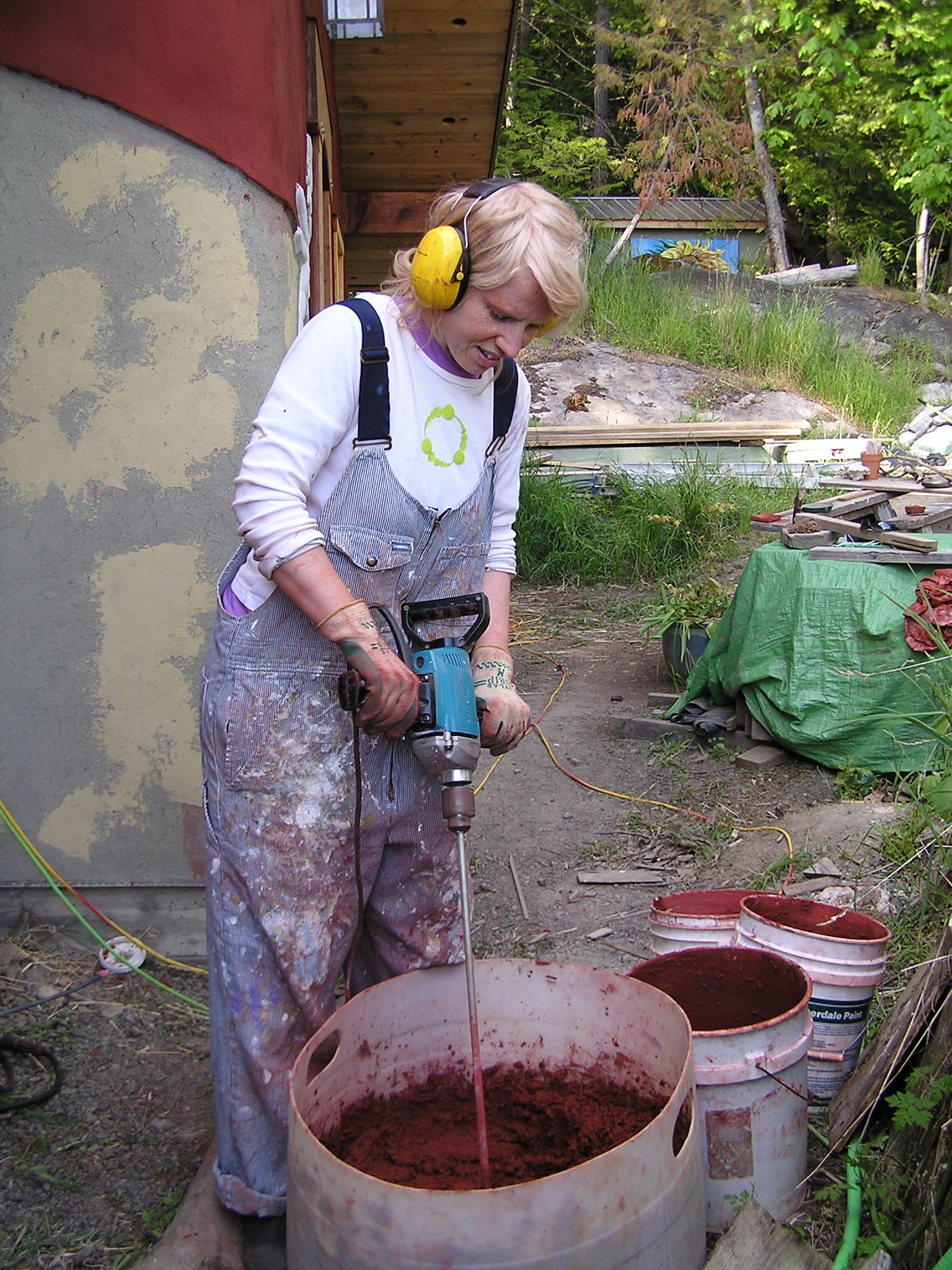

mixing lime, sand, and pigment

Lime plaster: 1 part lime, 3 parts sand.  For us, this meant 5 litres lime and 15 litres sand.  That is what we could mix in one 5 gallon bucket.  Spin it together with the mixer, and add colour pigment, mixing it in with a small amount of water.  Then we turned three buckets into the big tub and mixed them all together.  We worked out of this tub until we got low, then had our extra person work on mixing up more.

Before we started on the walls, I went around and plastered the sculptural areas first, thinking that it would make plastering the walls faster to do rather than having to do the intricacies at the same time as keeping ahead of the drying plaster.  Two were done in white, and two were done as the same colour as the walls.  What I discovered was this was not as straight forwards when it came time to do the walls.  Red pigment, as well as splatter from the rough coat of clay as it was being sprayed with water, got all over the finished sculpture and needed cleaning and touching up afterwards.  Also, it was hard to sponge the plaster without touching the already plastered areas, which made the transitions between the two look smudgy.  From a distance, it is not a big deal at all, and since this is the outside, we usually look at it from a certain distance.  So I recommend doing it all at the same time- just consider simple sculpture lines and expect to be slowed down considerably when plastering these areas.  Small tools are essential, as well as the all useful yogurt lid with the rim cut off.

sponging- making the finish texture smooth and uniform

The sponging part of the process comes when the plaster is tacky enough to leave finger prints but dry enough that no plaster comes off onto the fingers.  It can be a very precise moment, depending on the weather and how fast the plaster may be drying.  A damp sponge is simply moved around in circles to remove the troweling marks and give a smooth, uniform look to the whole wall.  Sponging too soon will pull at the plaster too much, and sponging too late means that the sponge needs to be wetter and a stronger motion is needed to smooth out the trowel marks.  A well troweled wall, however, won’t have very many marks to be eliminated.  We noticed that sponging on a too dry wall caused a variation in the colour pigment, making it a lighter shade, just like when we sponged near an already plastered spot and brushed up against it.

final plaster layer is about 1/4 inch thick

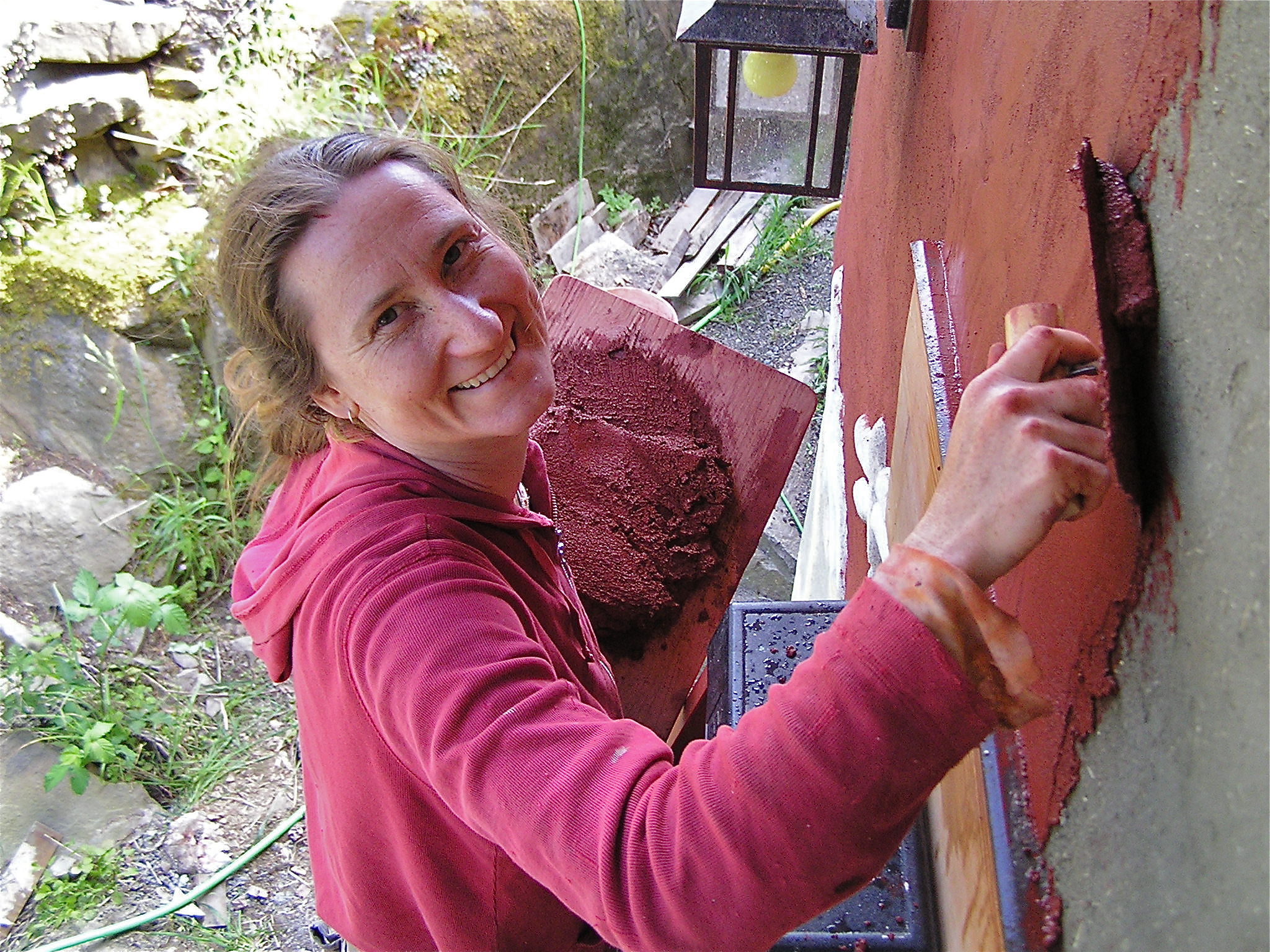

Our process went pretty smoothly.  Colin and I mixed what we needed for the day and did the troweling with a friend who pre-sprayed the wall sections ahead of us with water, sponged along behind us when the plaster was ready, and helped remix some of the plaster from the bottoms of the buckets when it began to dry out too much.  Getting familiar with the perfect consistency is learned simply through using the plaster, and noticing when it is too dry and difficult to spread or too wet and sliding off the trowel.

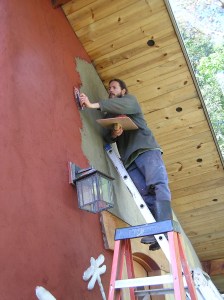

the art of troweling is challenged when ladders and awkward spaces need to be reached

The motion of getting it from hawk to trowel to wall is also a practiced motion that comes with repetition.  Generally, I would make lots of little overlapping rainbow swipes over a one foot square area, and then smooth the whole area down in larger swipes right away, and move on.  No putzing allowed!  Get it on, flatten it out, and move on.  Plastering a whole house gives lots of opportunity for repetitive motion learning…  start with the most hidden space and do the area around the front door last.

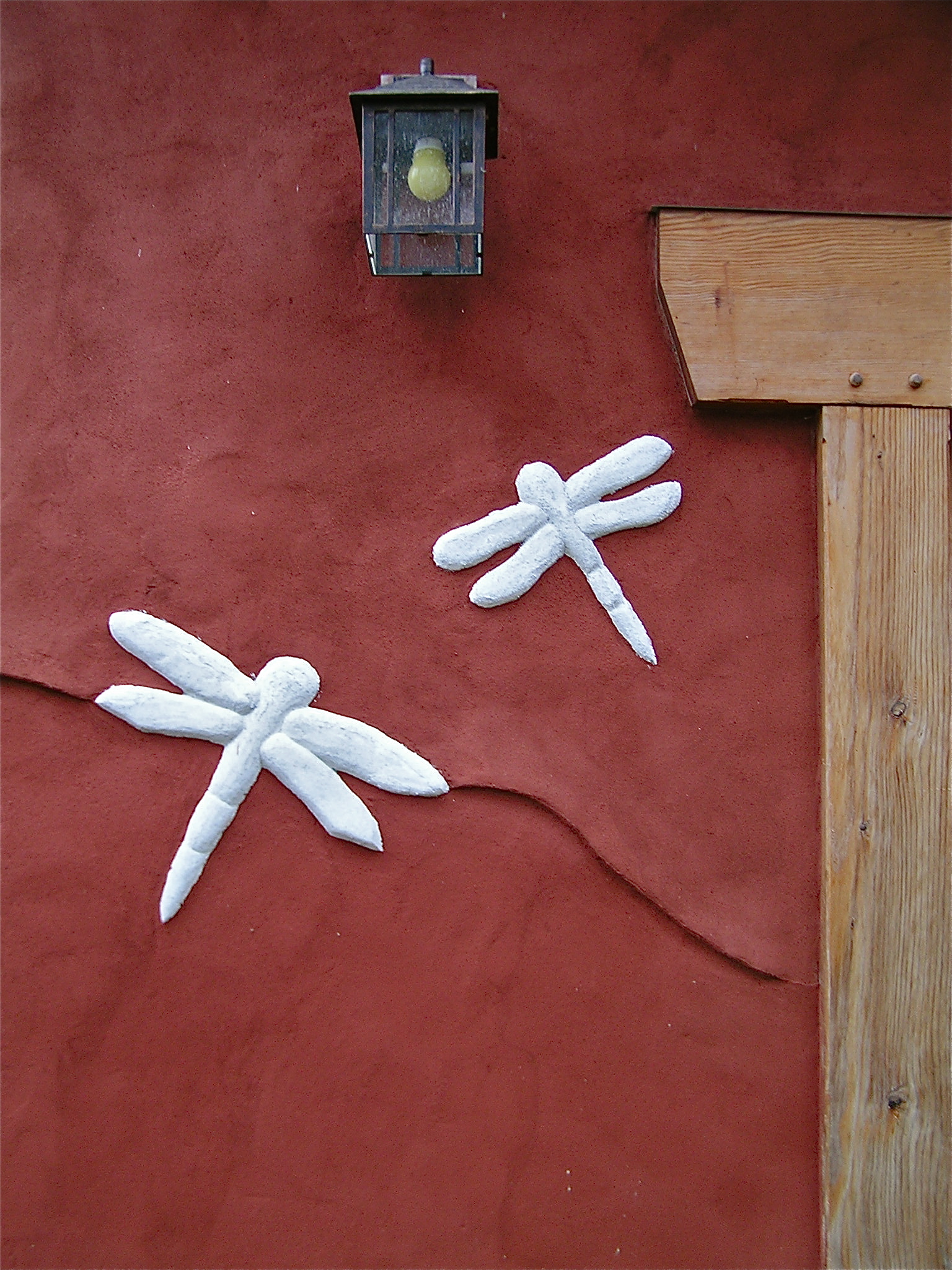

dragonflies at the front entrance

There are many details and considerations with lime plaster, and it is helpful if you have experience with some other form of earthen plastering, or if someone who does can give a hands-on lesson.  Again, we had the direction of Tracy Calvert, who has been building naturally since the 1980’s and has specialized in earthen plasters.  She has led many workshops and believes that skills of natural building are to be available for anyone willing to learn, like the traditional practices passed down from cultures around the world that enable the reality of shelter for everyone in a community and not only for the wealthy.

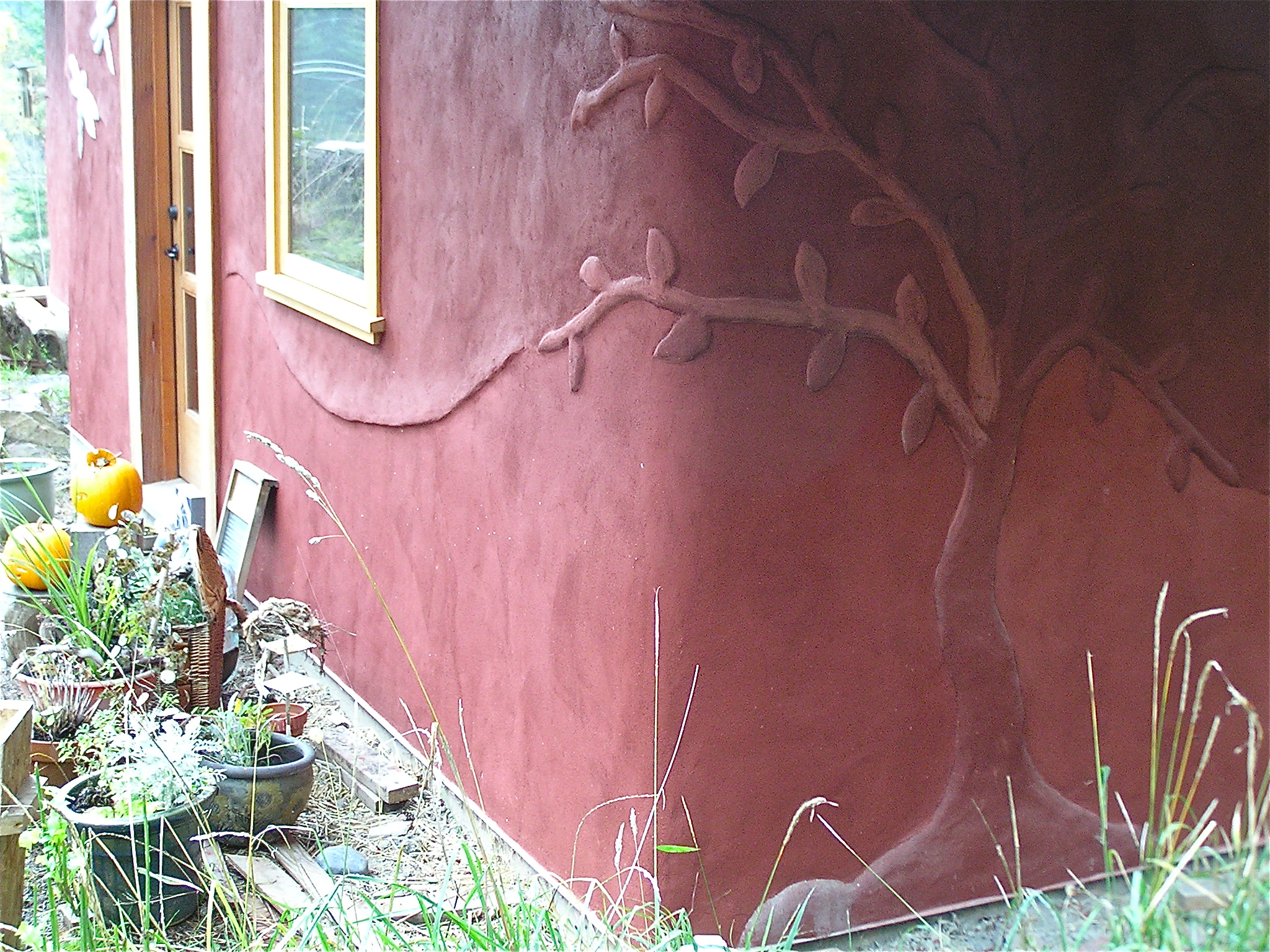

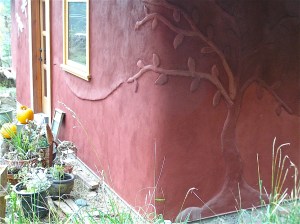

north tree

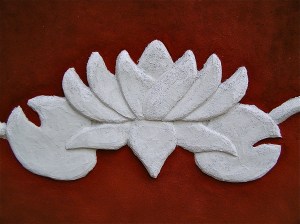

west water lily

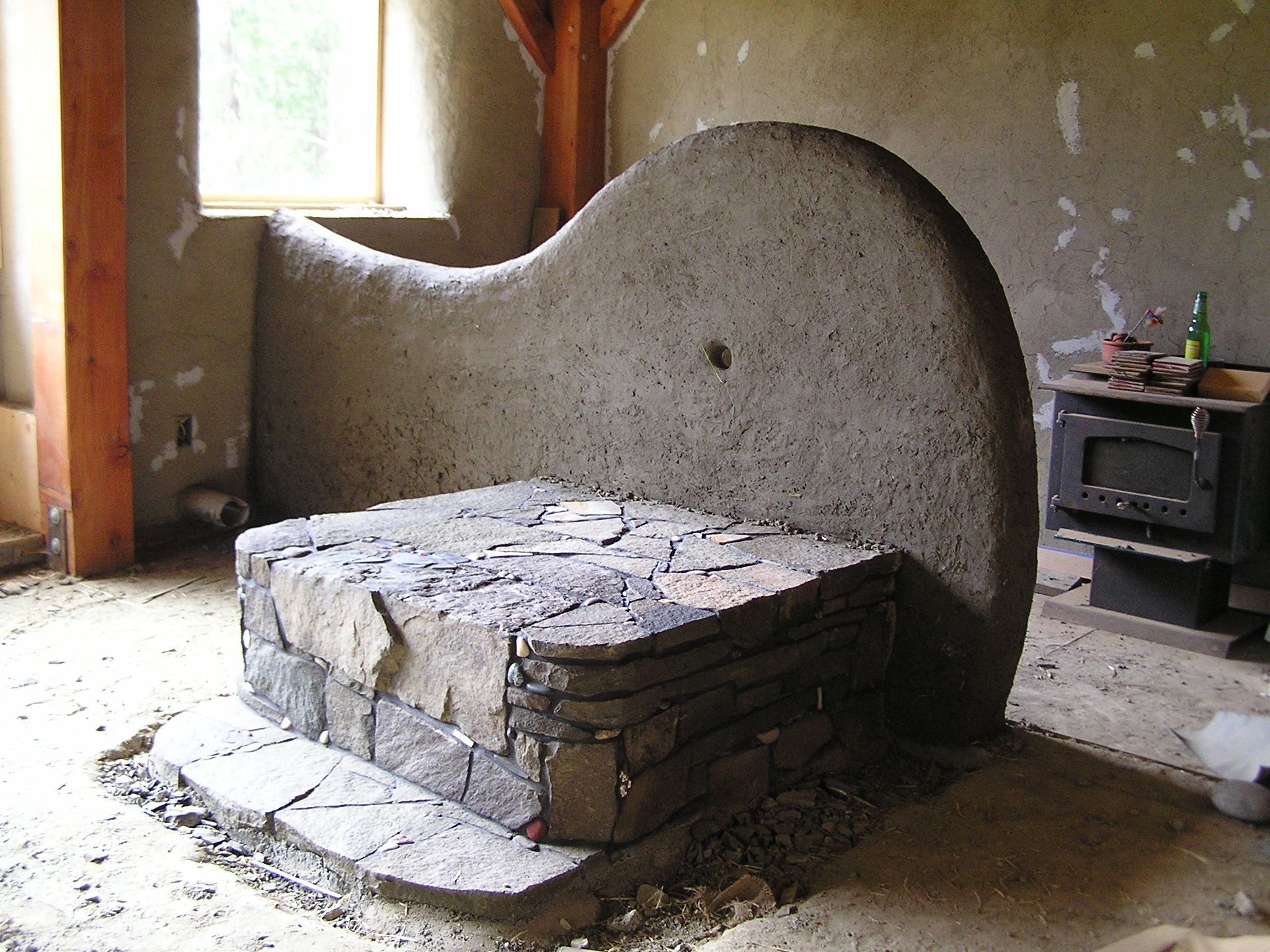

Building A Small Cob Wall

14 Dec 2011 1 Comment

by inspirationalvillage in Natural Building Tags: , , , ,

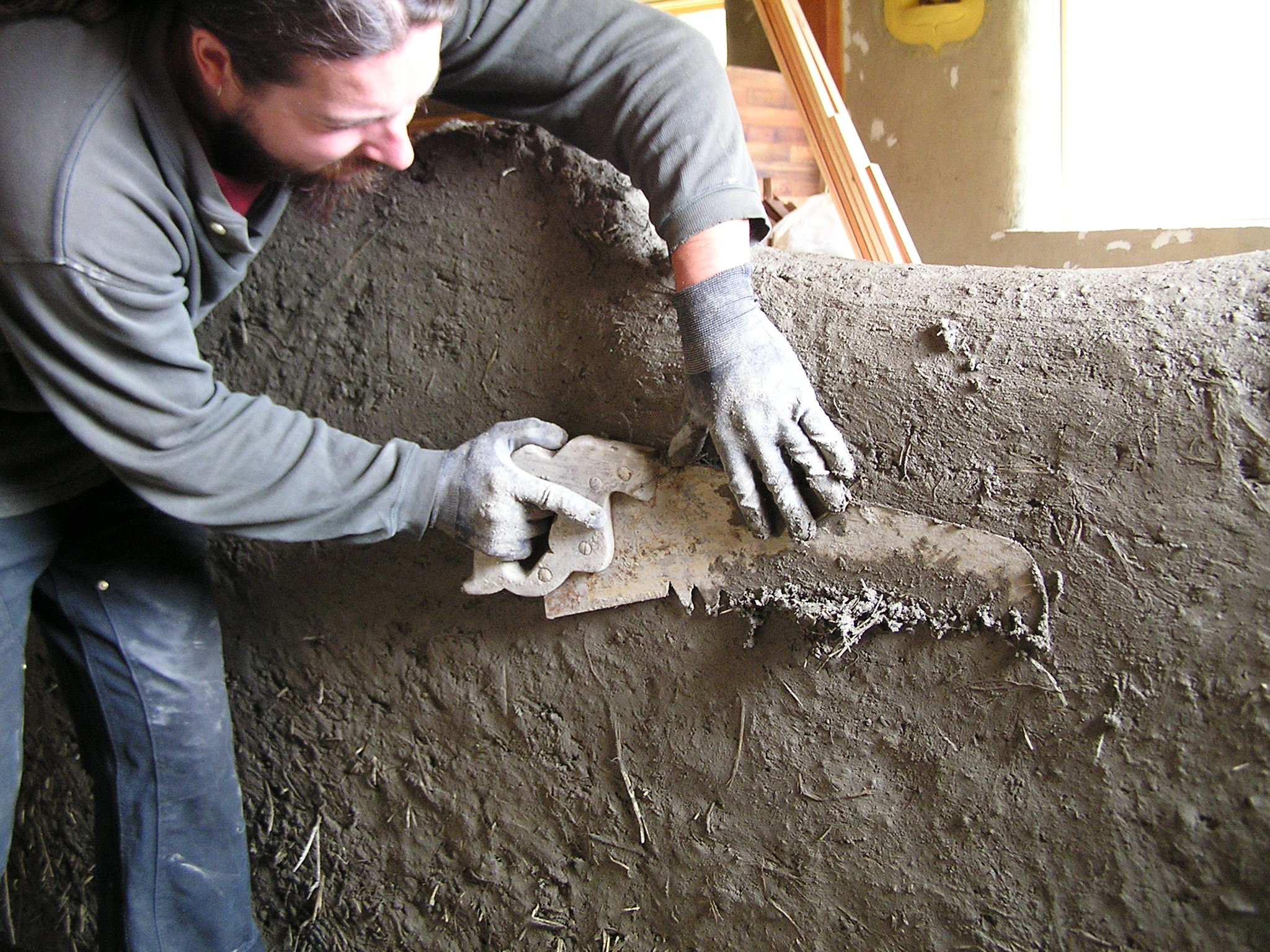

While we have used the basic mixture for cob in many places of the house- in the floor, as rough plaster coats, and for sculpting – we have only one small wall that pays tribute to the building techniques of cob.  It is a short barrier that separates the back of the wood stove from an area that will one day be a staircase leading down to the rest of the house.  Only 8 inches wide, it does not have the usual girth of a supportive wall, and rests on a ledge of concrete that was poured with the rest of the foundation and connects to the back of the two foot tall stone hearth.  We embedded an air vent pipe that opens from the outside wall to behind the stove, allowing the stove to draw in fresh air as it burns.

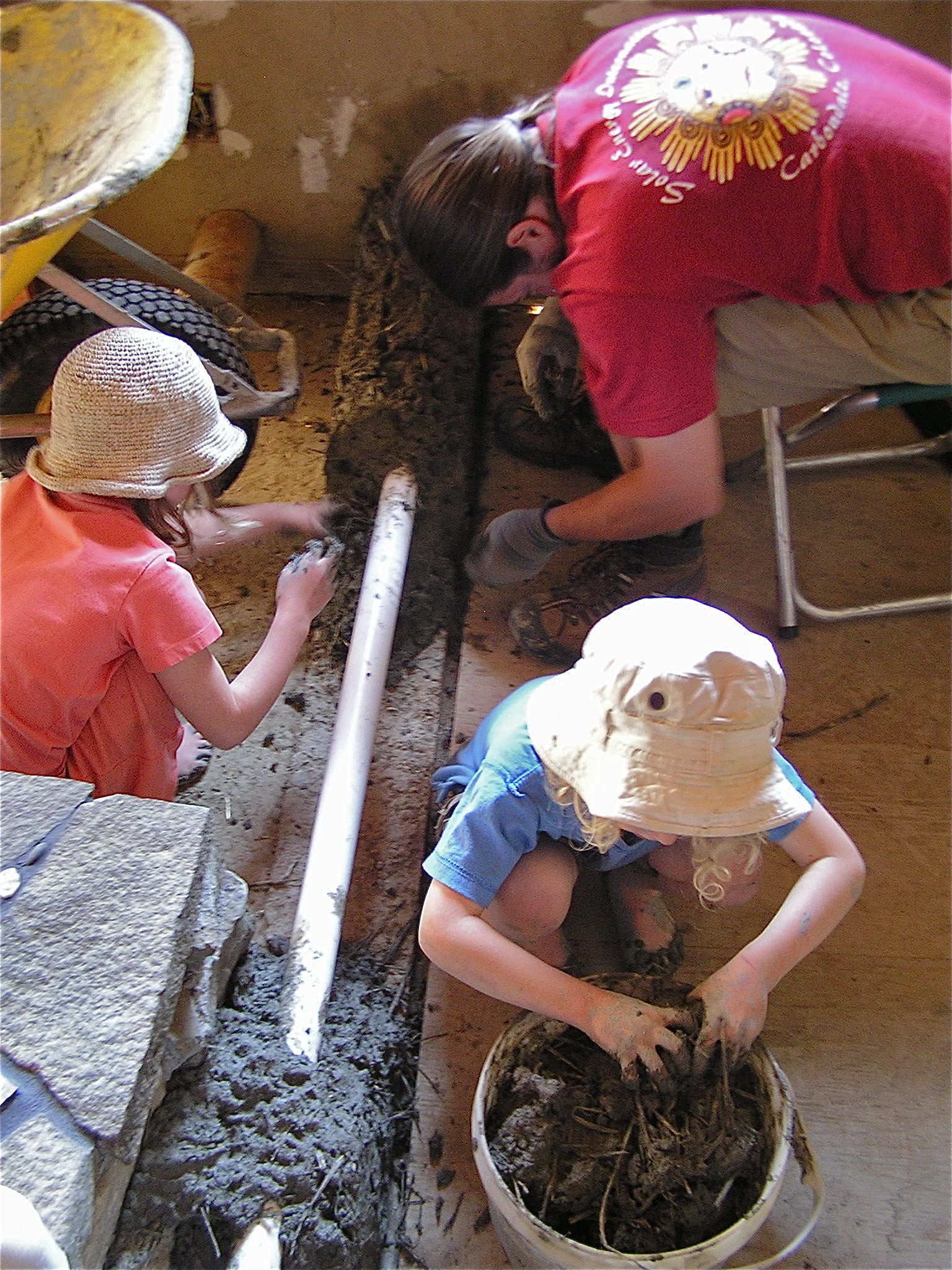

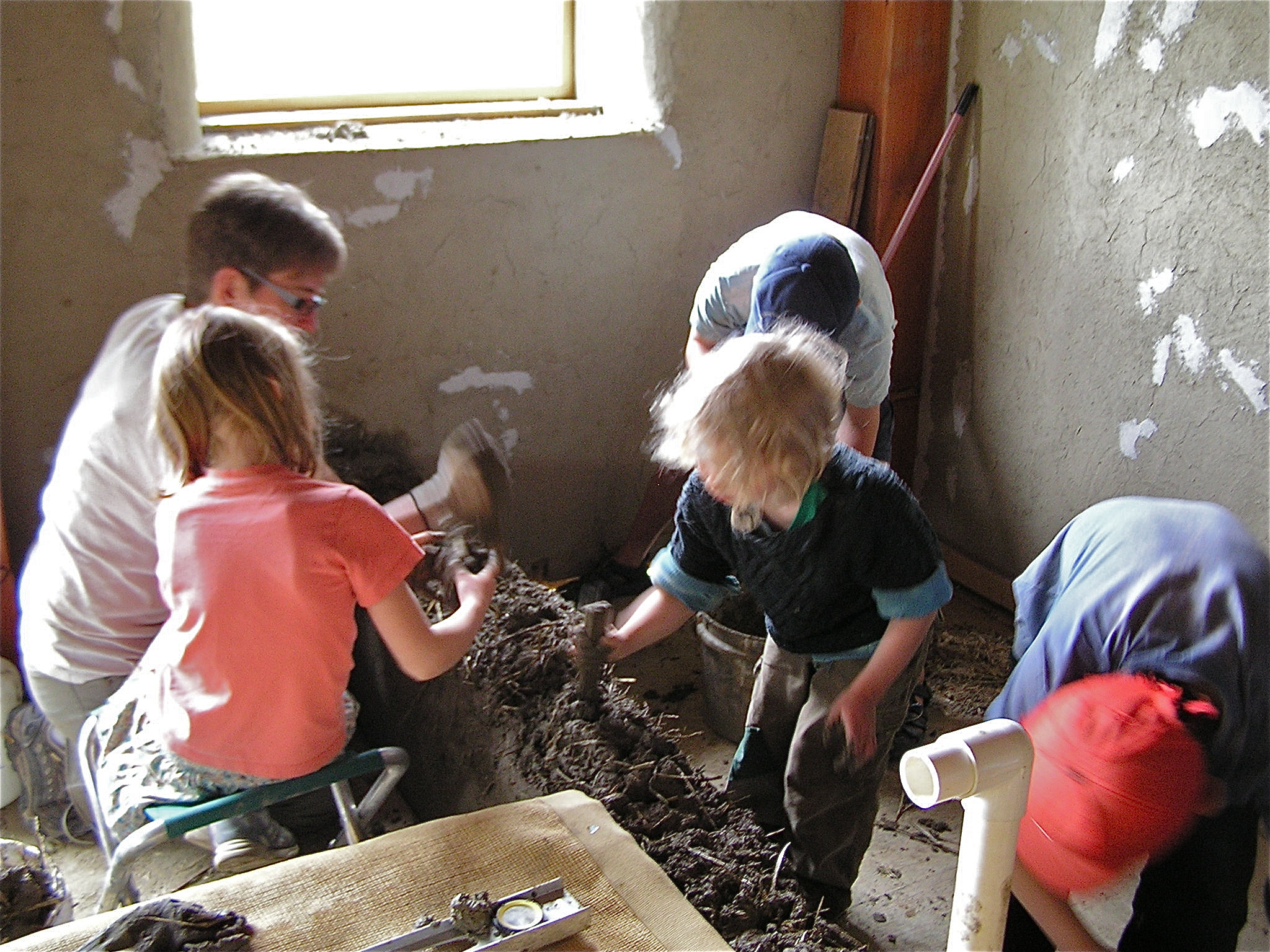

We started the wall with a work party, inviting families, neighbors, and interested friends to lend a hand or foot in stomping, wheel barrowing, and shaping.  Children and cob are a perfect mix and add such a joyful presence to the job!  We used clay from our huge pile gathered for the previous plastering and floor sections, clay that originally came from a farm down the road that dug themselves a huge pond and discovered clear blue clay.  The sand is pit run sand from the island, (a silty and rough sand with lots of rocks – just fine for cobbing with) and straw leftover from the bales we got for the house.  Stomping includes mushing the mix together with your feet on a tarp, adding water as needed and rolling the mix in the tarp once in awhile to help move the bottom stuff to the top.  Inside the house, we took handfuls and pushed it into the growing ledge of the wall, using thumbs and sticks to really integrate each handful.  The work party got us up about 2 feet, at which point the weight of the cob began to cause the wall to slump out the bottom.  We let this part of the progress dry out for a day, then used a saw with large teeth cut into it to trim off the excess cob from the bottom until it measured the right width again.  We could then continue to add on to it until it began slumping again.  The lowest part of this wall reaches just over three feet, and then arches gracefully up another foot behind the hearth and the wood stove.  Then my mom got her hands in there to sculpt a draping vine along the top and dangling down the sides, smoothing out the top of the wall in a rounded curve.  After letting the wall completely dry out (about a month!)  I could finally mix up some green colour samples for the final plastering.  (See my previous post, Final Plastering, for details on mixing and applying natural clay plaster).  Working around the sculptured vine took lots of patience and forgiveness, but in the end the natural quality of the plaster reflects and brings out a beautiful ease and grace framing the hearth.

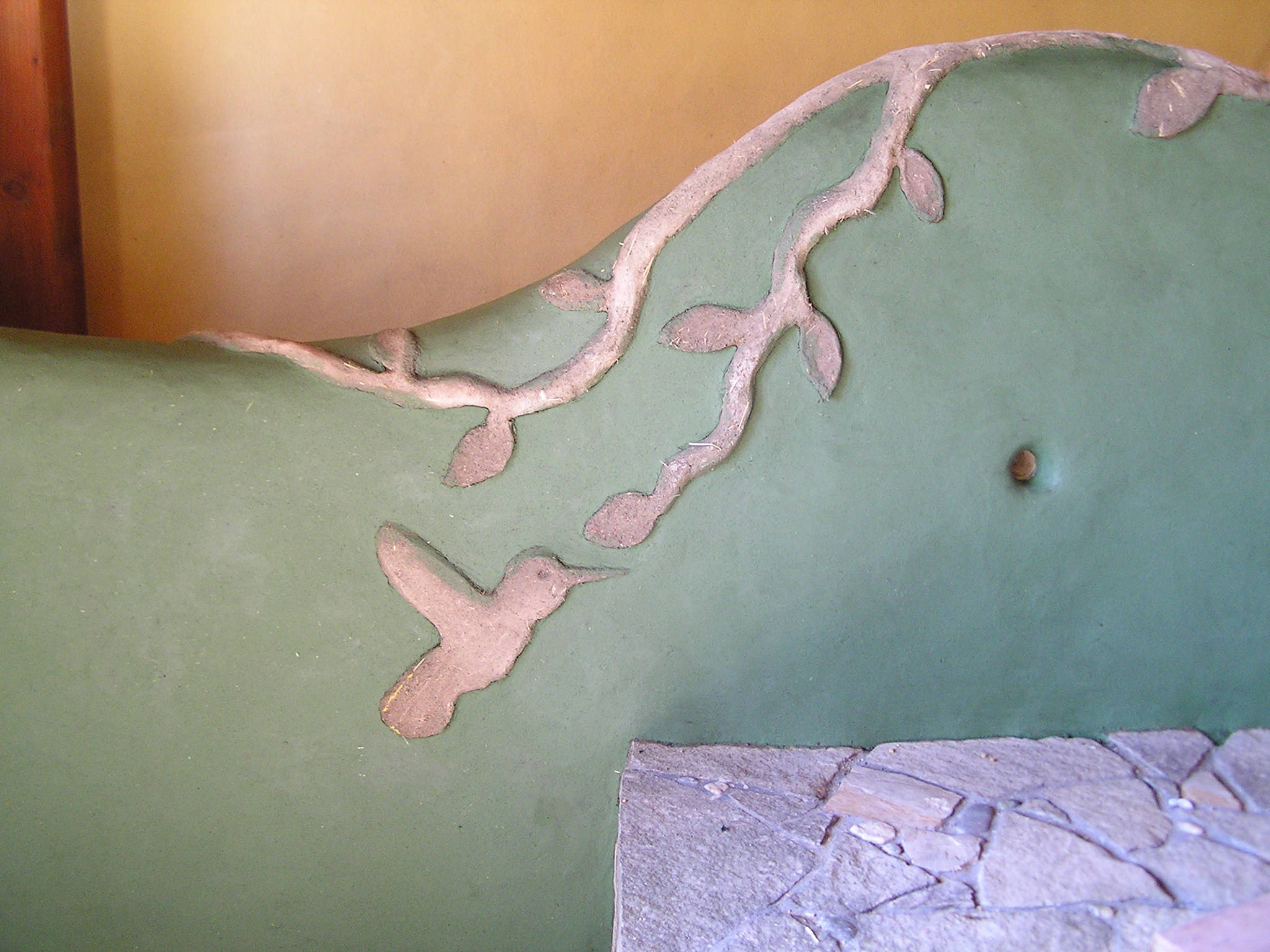

vine detail before being plastered

Final Plastering

08 Sep 2011 7 Comments

by inspirationalvillage in Natural Building Tags: , , , , ,

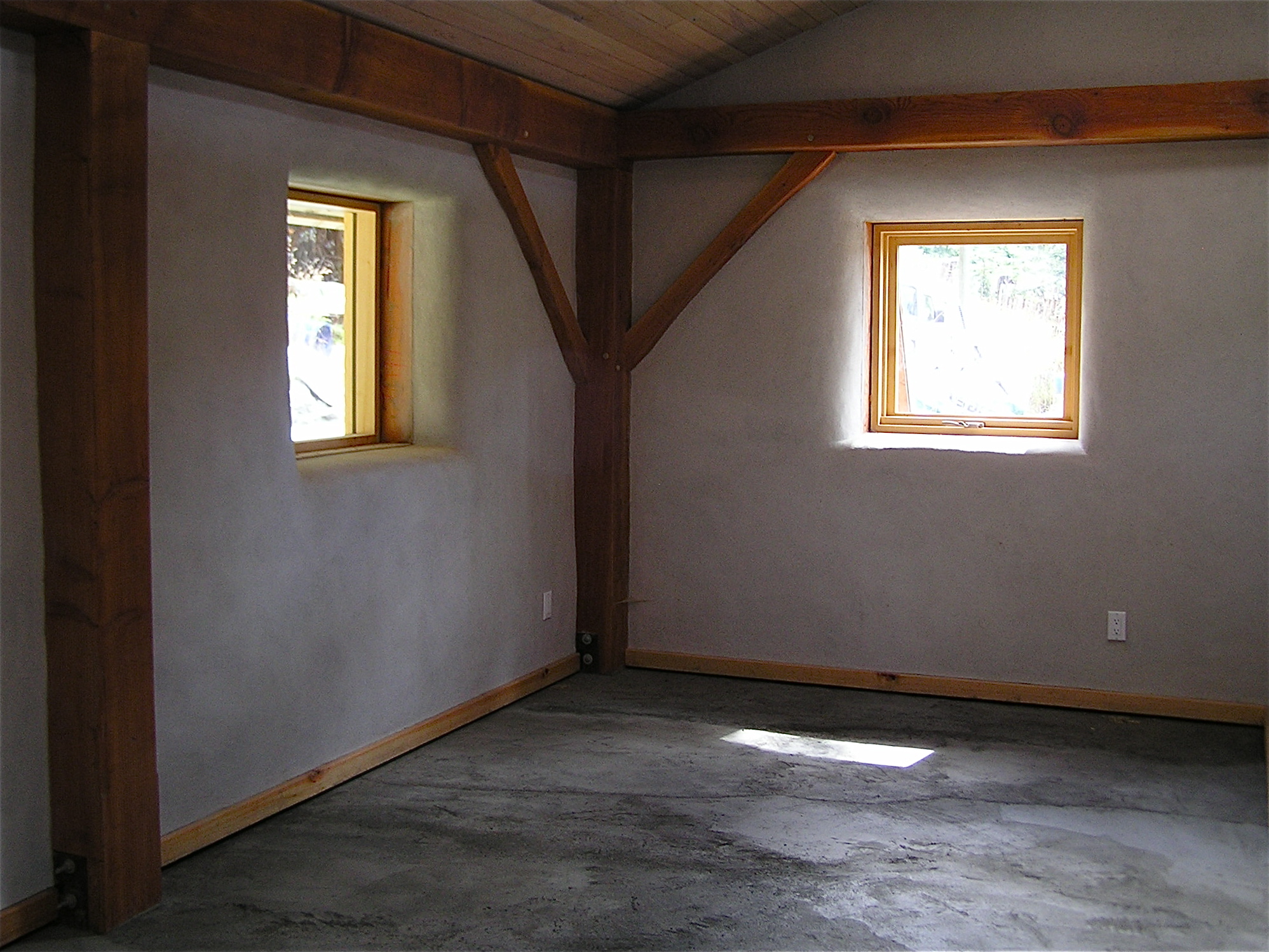

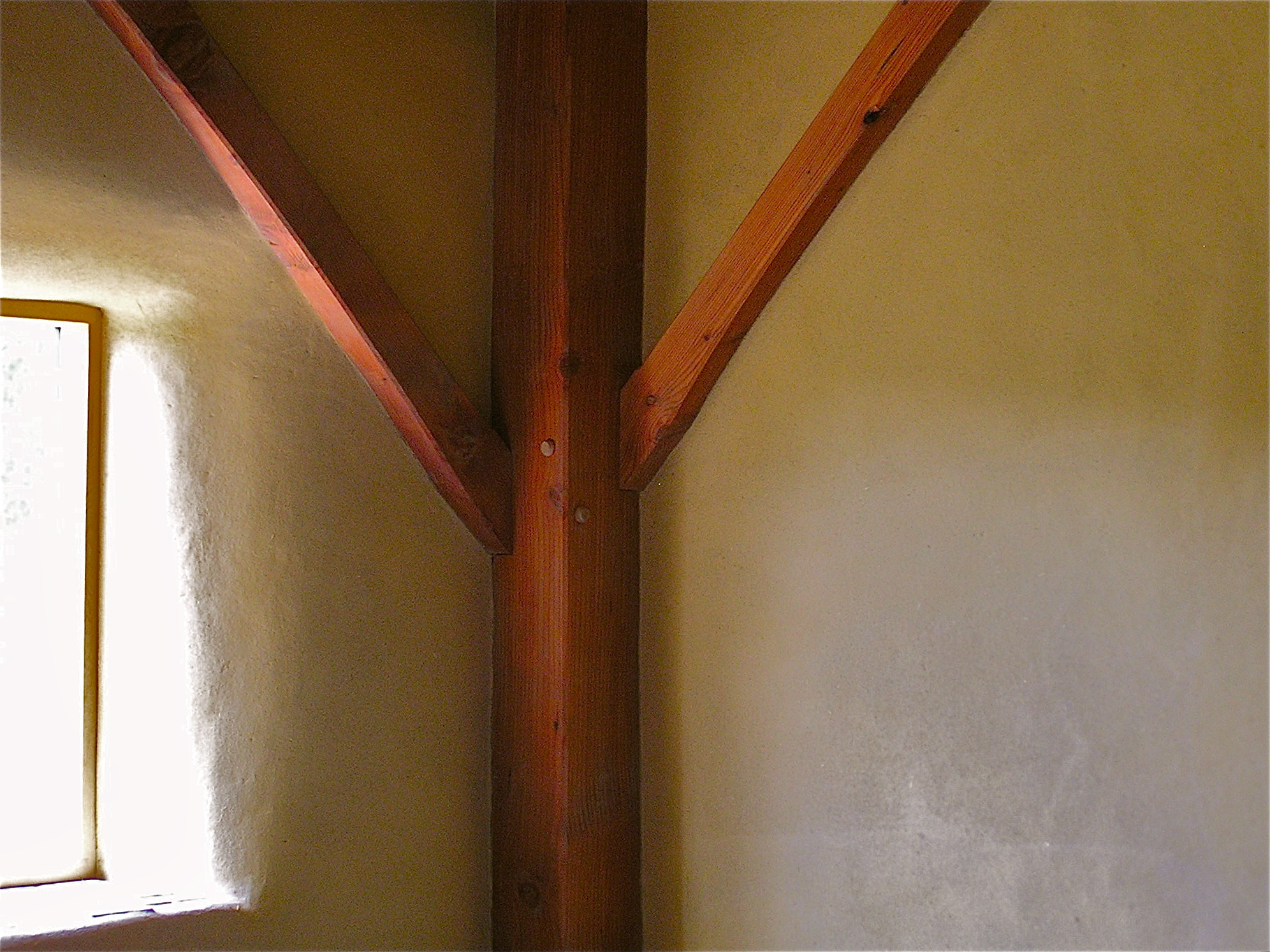

This summer, we have finally completed the last layers of the inside wrap of the house, including all the flooring and the final coat of clay based plaster on all the walls.  This last layer of clay plaster was much more particular in recipe and in application than the rest of the rough layers, and calls for it’s own chapter in explanation.  (I have already outlined the procedure for the rough coats of plaster in a previous posting, Natural Plaster.)  I would like to express my understanding of our process in openness to the many other recipes, methods, and materials that have been used with success throughout time and in many different places.

My experience is limited to our one house here on the west coast of Canada.  However, we have also been guided by our friend Tracy Calvert who has compiled her own knowledge and experience and has willingly and generously passed it on to us throughout our journey.  The ingredients in the recipe that we used are kaolin clay, stucco sand, fine straw, whiting (calcium carbonate), paper pulp, rice flour, and a small amount of borax and white glue.  The Kaolin clay is a fine powdered porcelin clay that was purchased at a pottery supply store, as well as the whiting, which is basically a chalk filler.

We used finely chopped straw left over from baling, but we also used an alternate fiber material of bulrush down, the fluffy insides of cattail heads harvested before they turn inside out.  The sand is just fine washed stucco sand, and the rice flour is mixed with hot water and made into a glutinous paste.  We soaked newspaper overnight and then pulped it up with our paddle mixer, which we used to make the plaster in buckets.  Ratios are as follows :  6 parts sand, 4 parts clay powder, 2 parts whiting, 1 part straw, and 2 parts paper pulp, 3/4 part rice flour mix,  a handful of borax, and two or three glugs of glue.  One part for us was a 1 1/4 litre bucket.  First we dry mixed in 5 gallon buckets the sand, clay, whiting and straw, then added the paper pulp and enough water to make the mix spin easily but stiffly.

Because we were going to wait to plaster the next day, we left the mixes at this stage overnight.  When we were ready to plaster, we added the rest of the ingredients and any colour pigment we were using, then compiled three of the buckets into a big tub and mixed them thoroughly together.  This helps with consistency of ingredient quantities as well as getting the bottoms of the buckets mixed in well. For colour pigments, we did some test samples using tablespoons of pigment to 1 litre of mix, then allowed the samples to dry to the finish shade.  We then multiplied the tablespoon quantity for the amount of litres in the 5 gallon buckets (some estimating was definitely relied upon) and added that amount of tablespoons of pigment per bucket.  Finally we were ready to put it on the walls!  We sprayed the walls with water to help bond the two layers together, then considered how to plaster each section without stopping or ending up with long edges of plaster that are left a little too long and begin to dry out.  Unlike the regular clay plaster, there is only so much re-wetting that the plaster can take before it is too difficult to smoothly work new plaster up to it without leaving lines or smudgy areas.  This sensitivity to time makes considerations of temperature and air flow quite important, and usually requires two or three people working together for smooth going.  We had two of us plastering, and one person in charge of mixing up new mixes, moving ladders, bringing coffee, keeping the music flowing, and generally making it possible for us to keep working our lines until a section is done.  We spent almost five days in total plastering the whole inside of our house, which worked out to be about 1200 square feet of wall and used approx. 27 buckets of mix  (one mix being one recipe.)  We used japanese trowels, bought through the internet, and homemade hawks (rectangles of plywood with a handle on one side), as well as a few smaller tools for tight corners and edges, and yogurt lids with the rim cut off for shaping curves. Generally, we covered an area with overlapping rainbow swipes, then flattened them all down in larger sweeping motions.  We plastered over drywall as well, which we had prepared with glue and sand to provide a grippy surface.

All the kickboards and window and door trim were put in place first so that the final plaster came to meet the trim and seal any spaces.  We also tiled the sills of some of the windows before hand.  At a certain time of dryness, we went over the whole wall with a damp sponge to blur any lines and troweling marks, then at another certain point in dryness we burnished the whole wall with a yogurt lid.  This brings up the clay and pushes in any sand, and gives the plaster a certain polish that makes it more durable and smooth.

We are so happy about our earthen walls, from the clay slip through the rough coats and finally plastered with the finished layer.  I began this house knowing absolutely nothing about natural plaster, and although it took lots of work and patience, it provided a full scope of learning the art of earthen plaster.  There is always more to learn, and I look forwards to continuing on and developing my methods and skills throughout the second half of the house.  I am so very grateful to Tracy for leading us on this path and providing support as well as space for us to take it on and call it our own.  The passing on of this type of skill is important to her as we share and expand our self- sustaining abilities for building beautiful and healthy homes.

The Truth Window

09 Jun 2011 Leave a comment

by inspirationalvillage in Natural Building Tags: , , ,

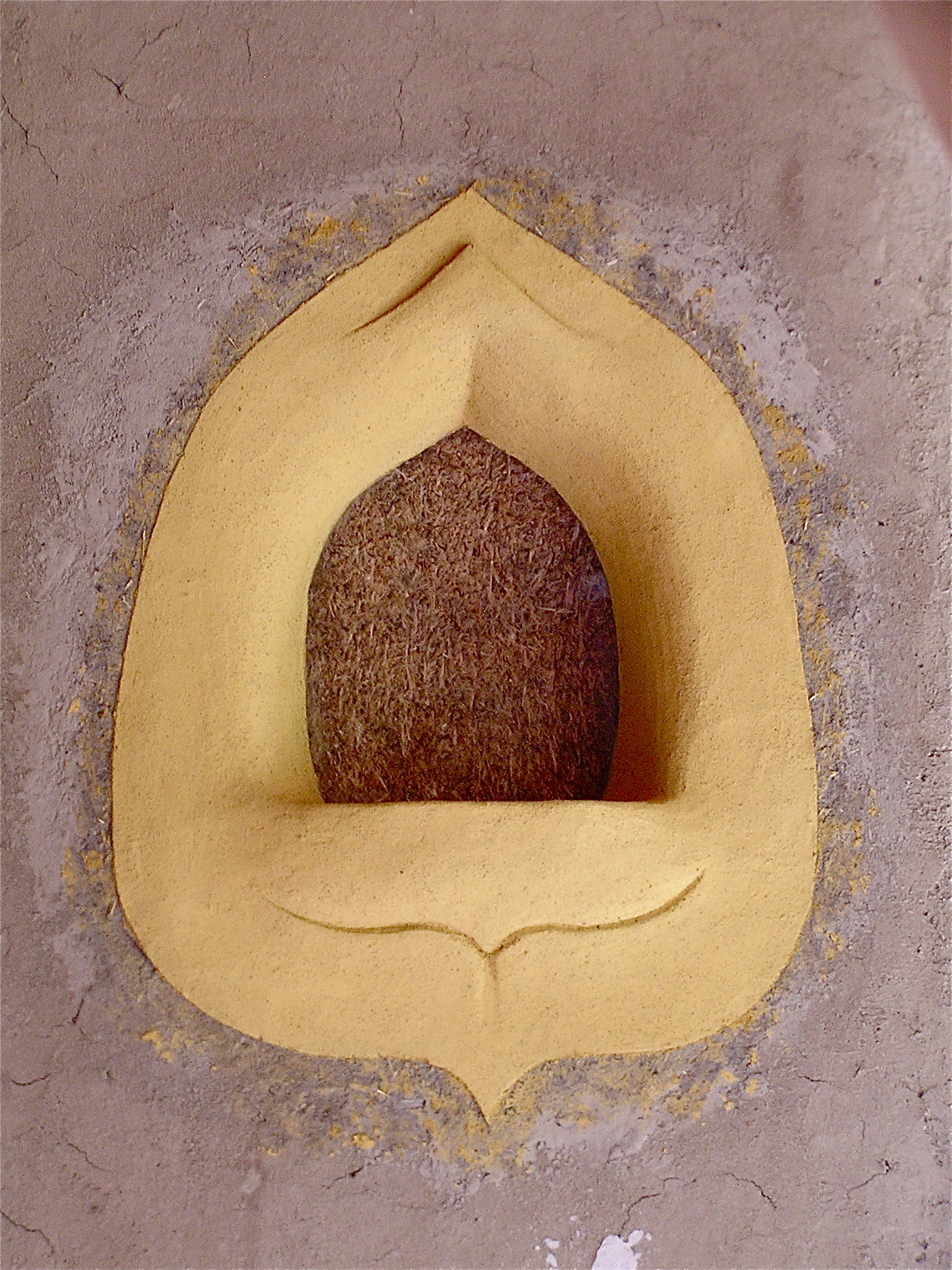

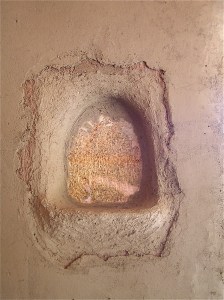

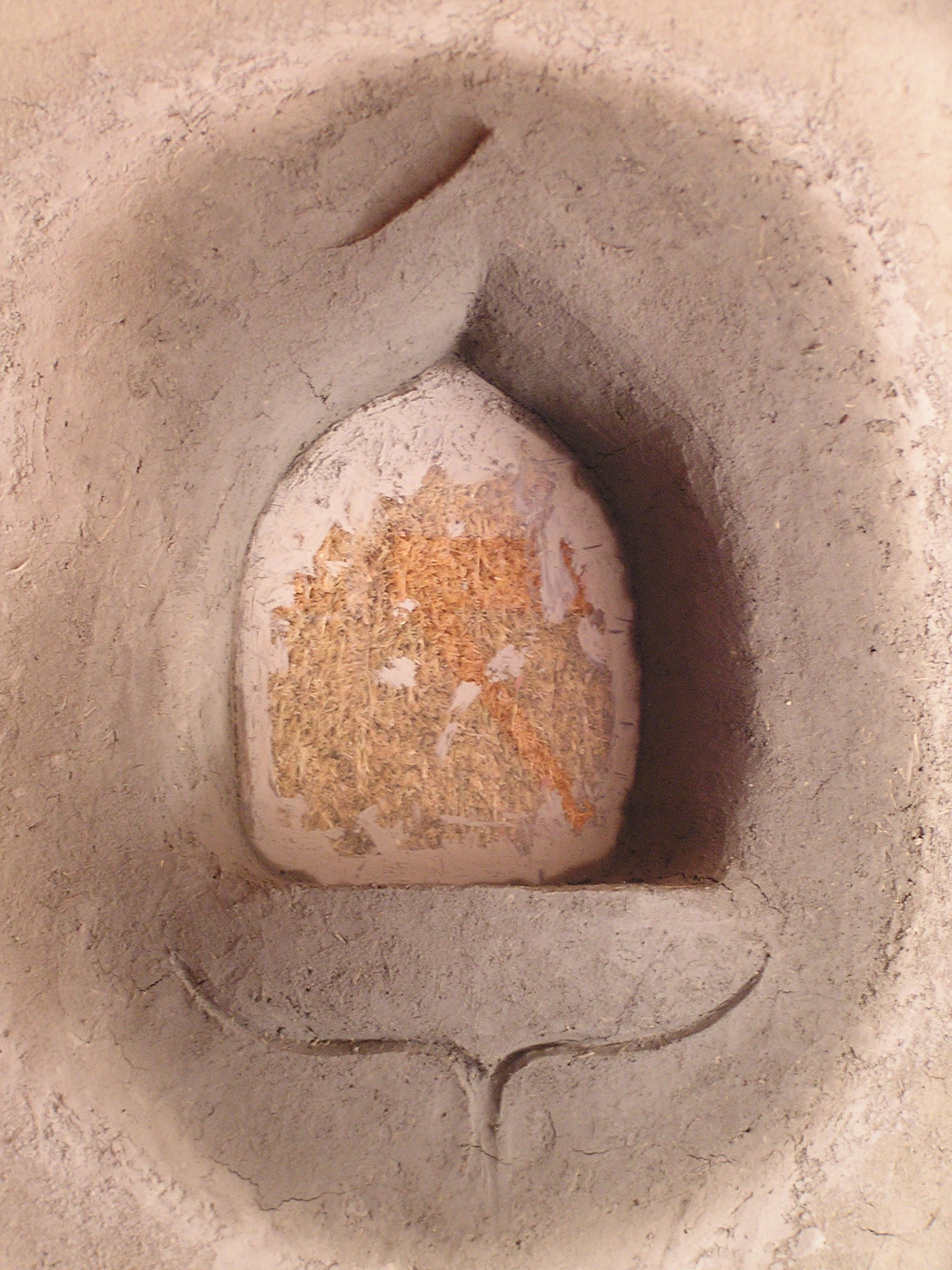

A traditional feature of strawbale houses is the truth window – an opening through which one can see the straw inside the walls.  Like every strawbale house, truth windows are unique and creative, providing a little peek into the golden stems.  Truth windows often take on the role of an altar, bringing gratitude for the sources of our materials and reminding us of the reasons for the choices we have made.  We have seen truth windows as elaborate wood frames, recycled metal grates, little doors that open to reveal the straw, and anything in between.  We went through a few different designs before we finally settled on the simple use of the clay plaster as a sculpting medium in which to frame and hold in place the piece of glass against the bales.  I decided to build out the bottom of the frame to create a small ledge in which to place little treasures, much like the objects that adorn an altar.

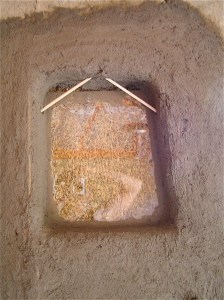

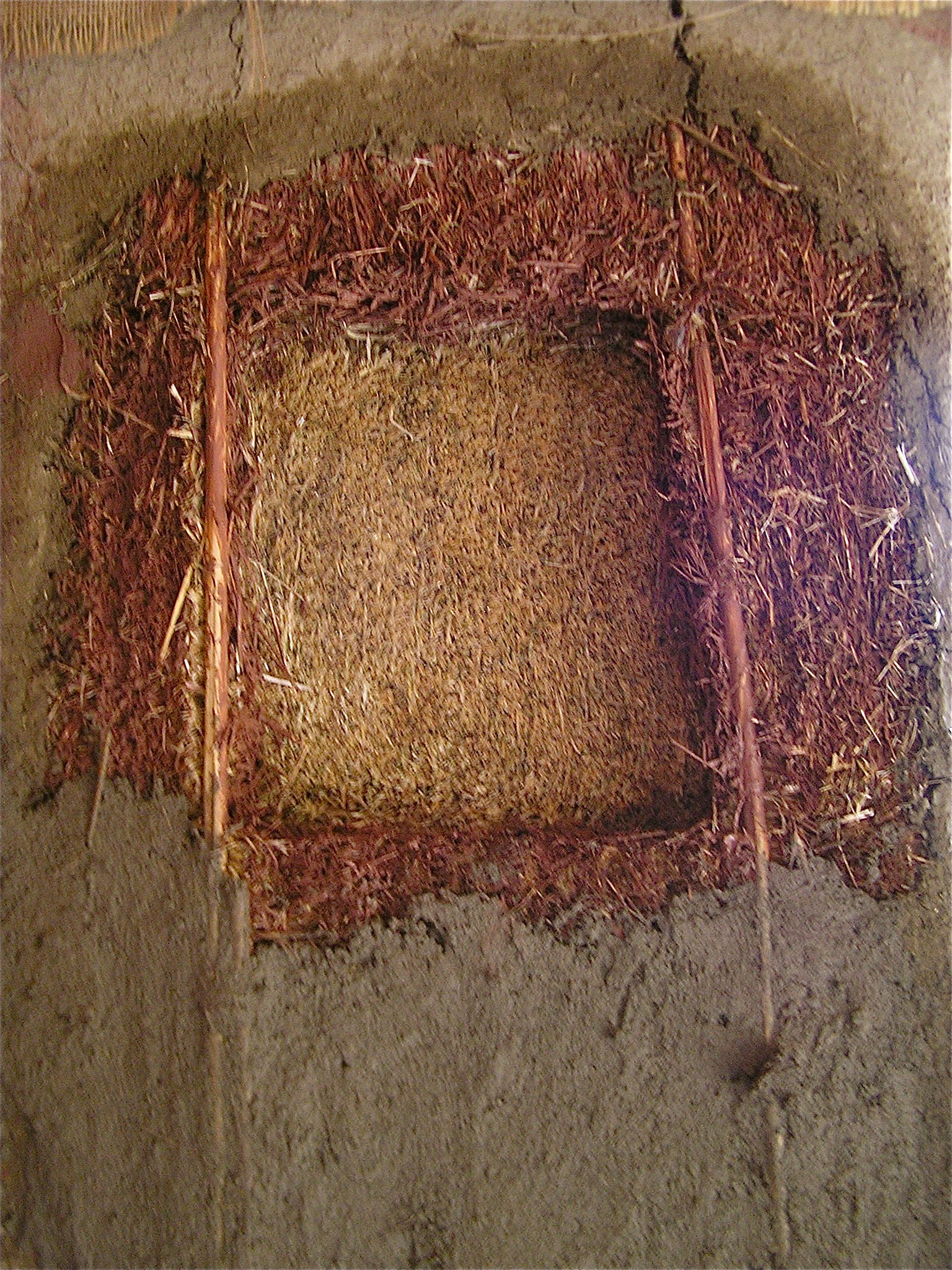

First we trimmed out a recessed area of the bales by about 4 inches and set the glass in place.  I used a pair of chopsticks to help hold up the plaster that would shape the top curves of the frame, then applied a first coat of plaster.  With the second coat of plaster, I built up the shape that I wanted in the curves, and added the little reveals above and below the frame.  The beautiful thing about such a sculptural style of building is that you can really make it up as you go, erasing and starting over, correcting and being surprised by what happens.  I haven’t done much sculptural work in my past, so getting the picture of what was in my head on to the wall was an interesting challenge of dexterity and a good lesson in flexibility.  What the truth window ultimately ended up being was a combination of a vague idea and surprise.

For the finish plaster,  I used the coloured plaster that Tracy and I had made up for our colour samples for the front room.  We ended up with a beautiful orange that was too dark for the whole room, but would make the truth window stand out against a lighter shade of the same colour.  We haven’t done the rest of the room yet, but we are working on getting all the other prep details done so we can do the final plaster sometime in July.  So for right now, our finished truth window sits lovely and peaceful amongst the strew of construction and chaos.  We look forwards to sitting just below it, eating our meals and rotating our treasures in gratitude for the soil, the sun, the rain, the seeds and the hands that cared for what has become the walls of our home.

Natural Plaster

18 Jan 2011 4 Comments

by inspirationalvillage in Natural Building Tags: , , ,

A large part of the strawbale construction of our house is the natural plaster system that closes in the bales while still allowing a flow of air to pass through, supporting a breathable wall system that is totally weather proof.  I am not going to pretend that I can write a whole how-to guide here on this post, but instead I hope to give a most complete account of what we did to our walls, and hope that it is helpful to anyone interested in taking on natural plastering, or it is interesting to anyone just curious.  There are many books, websites, people of knowledge, and workshops out there that can give accurate (and sometimes conflicting)  information, and we have taken these steps available to us for what makes sense for our situation.

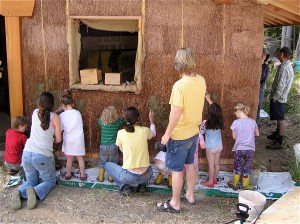

We have been blessed to have with us in our community an experienced natural builder and good friend, Tracy Calvert.  She has been integral in directing our experience, and helping out with the attaining of supplies and tools.  She is especially experienced in the art of natural plaster and it’s many layers of applications.  Our first layer was covering the straw bales with  clay slip, which is essentially like splattering the straw with thick chocolate milk.  Messy.  We obtained the clay from a pottery studio on Mayne Island, it is the off cut pieces from the creations of the studio which were destined to be sent to the landfill.  Some studios take the effort to reconstitute these wastes back into usable clay, but it is an arduous task to reproduce good quality clay.  Many studios prefer to consider these bits unusable, and so having them picked up by natural plasterers is a positive move for everyone.  After soaking the clay, we mixed it up with a heavy duty paint mixer mounted on a drill, until it was thick and smooth.  My method for getting it on the walls was to splash it on with one hand, holding a bucket below to capture what didn’t stick while rubbing it into the fibre of the straw.  Whatever technique is used to get the slip on the wall is a good one, there really isn’t any wrong way.  I covered every visible straw bit of the house, inside and out, turning it a lovely shade of dark reddish-pink.  It then spent a whole winter like this.

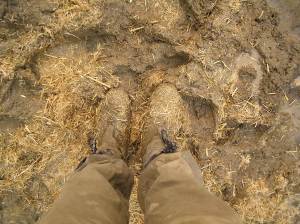

Layer number two is a cob mixture of clay, sand and straw mixed up in batches by foot and pushed on the walls by hand.  We got local clay from a farm down the road who was excavating a pond, pit-run sand from a local quarry, and the shavings of straw from when we trimmed the bales to make the surface even.  A good test for determining the quality of the clay is to do a jar test- put some clay in a jar with water and shake it up, then let it settle.  This will show the ratio of silt to clay, and whether or not there may be too much silt in the clay.  Ideally, the less silt, the better.  We built a soaker pit from leftover bales draped with a solid tarp, and kept it filled with softened clay ready for using.  After spraying the walls to get the slip wet, we pushed on the layer of plaster, spreading it about a half inch thick.  We started in early spring with a birthday party for our 4 year old, inviting all his friends and their families- really, this layer isn’t very difficult to master and it’s lots of fun to do with friends.  I had home school plaster parties, ladies’ night plaster parties, and afternoons with a few friends and their kids playing nearby.  The inside and out was finally done by the fall.

I was able to get started on the third layer in April.  Tracy came for a morning and went over the variation of the cob mix- this time the ratio of clay to sand was 1:2, with one and a half buckets of finely sifted straw.  (I used a certain bucket for measuring, and went through a few mixes of experimenting with ratios before finally getting to the mix that cracked the least.)  The sand we used was a finer, washed sand.  This layer is applied with a trowel, and encompasses the task of sealing in the flaps of burlap that connect the bale walls to the timber frame.  (Since clay doesn’t stick to wood very well and shrinks when it dries, a strip of burlap was stapled to the backs of the places where straw meets wood, and so the clay doesn’t move away from the wood when it dries.)  The burlap has to be rightly stuck down, so we brushed it with more clay slip until it was nicely saturated, then we rubbed it in roughly with plaster before applying a smoothly troweled layer of plaster.

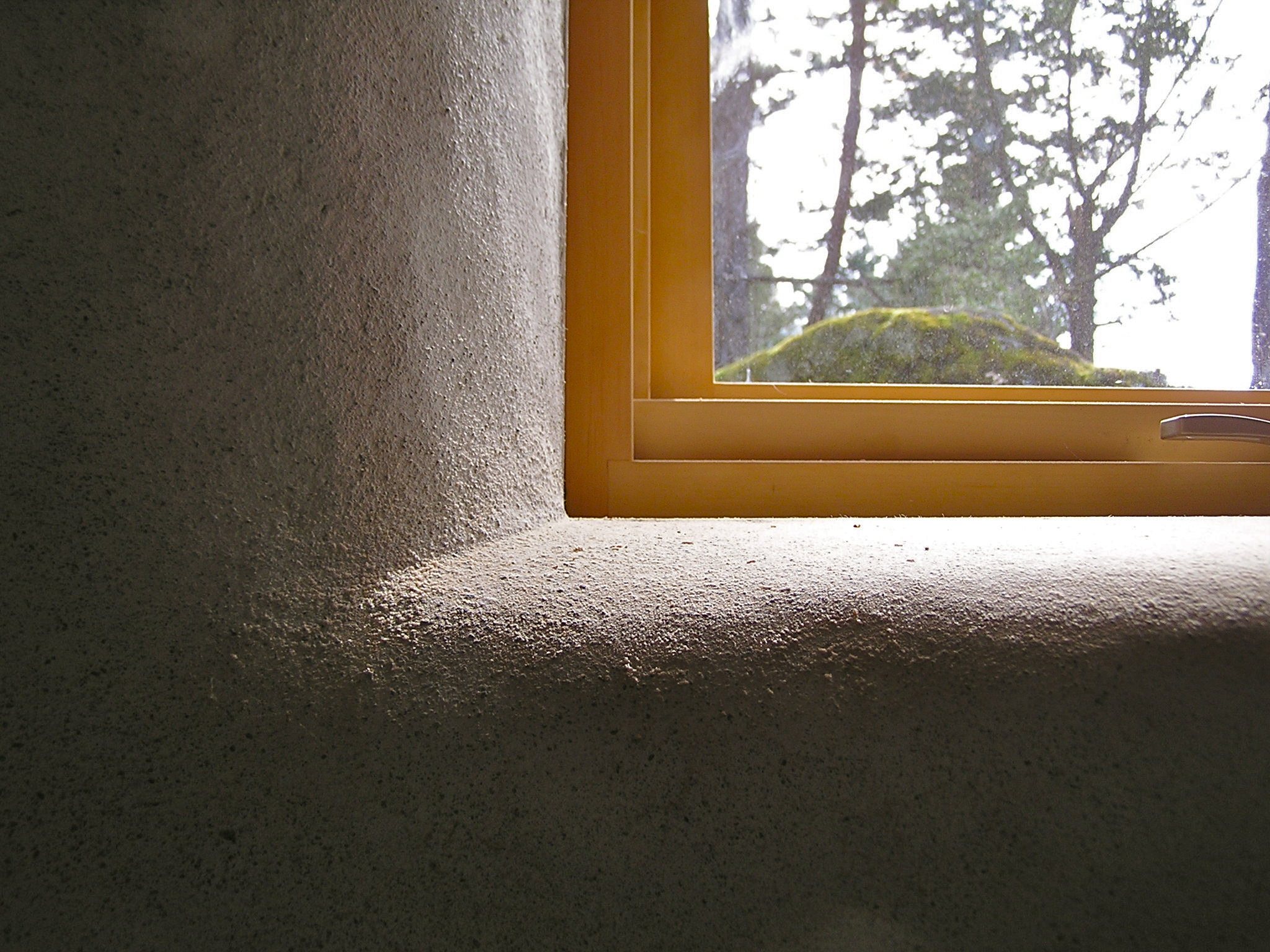

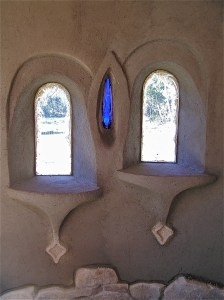

We also took the time in this layer to shape those beautiful big curves of our windows, sometimes building up the flares with extra plaster until the shape of the curve was formed to our liking.  This is also the layer into which any sculptural work can be done, which we all know is the best part of natural plaster and cob. Nana enjoyed contributing her artistic sculptural skills around the house.

I was much more careful about who I invited to help with this layer- I mostly took it on myself (although Taeven and Cedar both took on their own ways of plastering with the trowel so they could help out).  I had the help of a few friends who are artists (good hand-eye co-ordination) and who helped with the previous layer, so they had an idea of what the result was to be and they came many times to help, building up their experience of working with the plaster.  My own abilities changed so much with this layer as I worked around the house, that I have re-plastered much of the first area I started on, seeing flat spots on window curves and too much cracking in other places.

We also covered some of our interior walls with plaster.  In the mud room, we built a stud frame wall, then stapled expanded metal lath to the sides, filling in the middle with straw.  The plaster goes straight on the metal, in two layers to avoid any movement of the mesh beneath.

The final layer of plaster is yet to be applied, and will undoubtedly require a whole new lesson in natural plaster.  The outside will be a mix of lime, sand, and colour pigment, the inside coat uses finely powdered cayolin clay as its base.  We fine-tune the quality of our trowels with Japanese trowels.  There is more technique involved in applying the plaster to avoid lines showing up…  I am looking forwards to working with Tracy again to learn this new skill level of natural plastering.  The journey of using natural plaster on our walls has been long and enjoyable, I have massaged every inch of our house with friends, conversation, children, family, quiet musings, music, meditation, in the sun and the rain.  I have mixed every batch of plaster with the energy of my feet and legs, and with the soles of friends.



Our Strawbale Home

24 Sep 2010 2 Comments

by inspirationalvillage in Natural Building Tags: , , , , ,

My husband, Colin, and I spent a few years previous to when we bought our land, checking out a variety of natural building projects- cob, stawbale, rammed earth, cordwood, houses, garden sheds, playhouses- in various states of construction, doing workshops and reading books about land development theories and off-grid possibilities.  I remember walking into peoples’ homes, finished or not, and wondering when I would be the one answering questions in clay dusted work clothes, passing on the vision of a beautiful and healthy living space.  A few weeks ago we hosted our house on the Pender Island Eco-Homes tour, and I was able to see myself in just that light as I greeted over a hundred people throughout the day.  It’s been 2 and a half years since we began the foundation, and 2 and a half years of living in a 23 foot trailer as a family of four in the mean time.  We have worked beside a huge array of friends and community neighbors of all ages, with many of our materials being locally sourced.

Buying into the land with us (and making the reality of the price affordable for us all!) is my mother Margaret, otherwise known as Nana.  Colin and I have always welcomed the idea of shared land buying and building- we researched and looked into the prospect of larger, intentional community style projects here on Pender before this piece of land presented itself in such a way that we could not ignore.  We asked around for anyone else who wanted to join in, but it seems to have worked out for us to get going with Nana and keep our doors open for future co-creators.  The whole design of the house involves two more small levels descending down the rock slope in front of the part we are currently building, which will be a level of bedrooms and a level with an open kitchen and living room for our growing family.  The section we started with is a 590 square foot suite for Nana with a 290 square foot shared art studio.  This strawbale house opens into a nice size mud room, with a door leading south to Nana’s kitchen, bedroom, and living room space all in an open format (the front section with the curved, living roof).  A door leading north from the mudroom goes into the art studio and utility room (back section of house with sloping metal roof).  There is a small storage loft above the mudroom that will serve as a bedroom for the kids while we are building the other half of the house in the future.  We chose to build the house in sections due to the fact that we are living in a 23 foot trailer, and Nana is paying rent down the street, and getting one section done faster so that we can move into it together is much more appealing than waiting even longer and stretching our finances further before getting something comfortable to live in.  Nana has been a great help with taking time with Taeven and Cedar, baking us bread and treats, making meals when we are working late, and adding her artistic touches when she can, as well as taking on any jobs she can help with.  She also manages to help plant, weed, or harvest in the garden.

Colin designed the floor plan himself with considerations of the passive solar capacities available through the south facing slope that we are building on.  He hired our friend Garrett (McLoed Timber Framing) to design and work with Colin on the traditional wood jointed frame.  We used beams salvaged from old bridge timbers by a company on Vancouver Island.  The bales were bought from a family owned farm in Saanich, and we are covering them with natural plaster- a foot mixed combination of clay, sand and straw which is then spread over the bales by hand, and then covered with another layer smoothed by a trowel.  A final coat of lime plaster will seal in the  whole wall system, keeping it breathable, dry and super insulating (Straw bales are reported to have an R value between 35 and 60!)  We have a hydronic in-floor heating system laid beneath an earthen floor, the final layer being yet to happen.  This past summer we had a fabulous work party to get all the soil up onto our living roof, and it is now planted with native succulents and other sedums that I have been propagating over the last 2 years.  I hope to be able to post our continuing developments as we work this winter, as well as describing in more detail of any of the steps we have already completed.
