Building The Bathroom

08 Jul 2022 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , , , , ,

After finishing the bedrooms, we directed our attention next on the bathroom. We had a corner tub already, which we found for sale on the side of the road a few years previous for $200. The tub had been sitting in the forest and consequetly needed a good cleaning before we wrestled it up the stairs and into the space. Because of this affordable find, we had to redesign the bathroom somewhat since we had originally assumed we would have a regular rectangular tub. In fact, having this larger corner tub really simplified the arrangement of the space and probably saved us a bunch of time.

Building the frame for the corner tub. We also packed insulation around the underside so the water stays hot longer!

The main job involved in finishing the bathroom at this point was tiling. We obtained a certain amount of black slate tiles, mostly 1×2 foot tiles, and some scraps, from a friend’s leftover project. We weren’t sure if it would be enough tile, especially now that our corner tub redesign added more area that needed to be tiled, but another friend of ours who came visiting one day was excited to give us 100 square feet of almost exactly the same tile that he was no longer going to use at his place! It had a slightly different texture and colour, but was close enough to hardly tell at all. We hired Keith, a local tiler, because at this point, having speed, tools, and expertise sounded way better than our old ways of fumbling through these things ourselves. Since our job was relatively small, Keith even used up a bunch of scraps of backing board from other jobs.

We already had a basic sink from the recycling depot here, but another old friend noticed that we had used Mexican Talavera tiles around the base of our woodstove, and offerred us a hand painted Mexican sink which she just had hanging around her place… it is such a beautiful and perfect addition! We were planning on using the same Talavera tiles as the backsplash in the bathroom, and now the artistry and colour of the sink and tiles really looks amazing and lively with the neautrality of the black slate and white walls.

Gifted hand painted Mexican sink and talavera tiles purchased online from Mexico, black slate counter top and mahogany trim

Colin trimmed everything out with the mahogany that we obtained through a work trade 17 years ago, and which has become all the window sills in the bedrooms. The toilet* was installed in a little nook, with the wall of the shower on one side, and a framed linen closet on the other, which doubles as a hide away for some awkward venting pipes which coming through from the utility room. We used all the low grade t&g cedar for the walls around the toilet and cupboard, and added the multi-toned blue and grey theme on the wall of the bathroom around the door. Both the cupboard door and the main door are solid wood doors reclaimed from an old house that Colin’s Dad had in his salvaged collection for a long time. They came complete with the old fashioned glass door knobs.

The final plaster is one of the last things to be done. Tracy and I spent one lovely day mixing a small batch of natural clay plaster, the same as in all the rest of the house, and did the bathroom and the mud room. Little by little, our slow house building project was coming together.

The bathroom counter and drawers were built with the aid of our carpenter friend Pete, who also did all the kitchen units. We used yellow cedar for the frames (from the material left over for the windows) with the same blue and grey cedar inside them, and the green frog handles were purchased 5 years ago from the clearance bin at Lee Valley. At the time, we made a very imagined estimate of how many handles we might need for all the doors and cupboards in the house. We were one short. Luckily, the clearance bin still had frogs.

The bathroom really seems to be a small story full of serendipity, friendship, patience, salvaging, flexibility, and persistence. We didn’t have everything figured out and planned ahead of time. We found what we needed and made it work. We stayed open to change. We were not fixed on a certain outcome. Materials showed up, sometimes from over many many years. The bathroom has become my favourite room, especially in the morning with the main window on the eastern side.

*One thing I highly recommend for the bathroom- a bidet! We purchased a simple add-on bidet (Tushy!) and absolutely love it. Wayyyyy less toilet paper which is such a bonus for the septic system. Also for the trees. We use pieces of cloth for drying and just wash them.

Final Clay Plaster, Part 1

09 Apr 2021 1 Comment

by inspirationalvillage in Natural Building Tags: , , , , , ,

In January of 2020 we made a huge push to complete the middle floor of the addition, which are the bedrooms, hallway, and the connecting passage from the existing house. After finishing the ceiling and floors, we needed to complete the final clay plaster on the walls before we could build the closets and shelves and move in. In retrospect, moving into long awaited personal space a month before we were all ordered to stay home was a serious blessing. Our kids were now in grades 9 and 12 and completing their school year at home, so providing some study and private space was an immense step in handling the pandemic.

I have already described the details of mixing and applying clay plaster back in Sept 2011, when we completed the first half of the straw bale house~ read through Final Plastering for all those details. We used the same recipe, did the same procedure for colour sampling, and plastered alongside our friend and mentor Tracy Calvert once again.

We mixed up the estimated amount of plaster needed in 5 gallon buckets. The next day we started with the hallway, which we wanted to leave uncoloured and as bright as possible since it runs down the north side of the bedrooms. Working around all the swoopy sculpture definitely takes up more time! Tracy and I did the plastering, while Colin looked after keeping the plaster mixed and refilled into our work buckets, and doing the sponging and burnishing as the plaster dried slowly.

It took us one whole day to do the hallway, and two shorter days for each of the bedrooms. It is important to remember that the amount of open, large wall space is not so much a factor of how long it will take to complete, but rather the amount of windows, edges, and sculpture. Those are the features that slow down the process and thus require time management considerations of each person’s role, as the working areas of plaster need to be monitored for dryness so the completed area will have a uniform, continuous surface. It is also good to keep in mind the changes in colour as the plaster dries, so attempting to fix up areas that have already set will result in colour patchiness. We are very happy with these walls, the hallway is indeed nice and bright and the warm orange tones in the bedrooms are cozy.

We are looking forwards to completing the last section of the addition this year!

Finishing with Fir Flooring

11 Feb 2021 Leave a comment

by inspirationalvillage in Natural Building Tags: ,

We decided that fir flooring would be the best material to use for the mid-floor bedrooms and the staircases that lead up to them as well as up to the top floor (the existing first half). We found 600 square feet of locally milled fir, 3/4inch by 5inch t&g, in ten foot lengths. It was very blonde, which was the only thing we felt we wanted to change.

We found an interesting technique on the internet which involved soaking steel wool in vinegar for awhile, and then using the strained vinegar as a stain on the fir. The steel turns the vinegar a deep red or brown colour, depending on how long it is left soaking. The vinegar then reacts with the tanins of the wood, turning it a varying shade of grey, brown, or red. The video we watched (and we found many!) showed comparisons of the vinegar mix on many different types of wood, which had a large variety of resulting colours.

We did a test patch after a week of soaking, and then again after another week as we wanted it to be darker. We decided in fact to do two coats with the vinegar. Coating the boards after with an oil stain also made the vinegar stain pop out and deepen the tones even more, and we did two coats with the oil stain as well. I did a lot of moving these boards around, using the open rafters of the ceilings as as place to lean many rows of boards in a organized way, trying to keep track of which ones had been stained once or twice!

The vinegar stain was a bit like a magic marker- it took about 20 minutes for the reaction to occur and the wood to deepen in colour.

It didn’t take too long to lay them down. I think we may have borrowed a floor stapler to make it even easier. The stairs were definitely a lot more work. Colin pre-glued up the stair treads with an unstained fir nosing, and then he glued up the rises (about 7 inches tall) and then glued them all down over the rough plywood stairs. The yellow fir nosing really helps with defining the edge of the stair.

I like how the darker tone makes the floor look old, and is also a nice contrast to the brightness of the ceiling and wall cedar which is quite yellow. We were so happy to find such a simple method of staining the fir.

Internal Shear- T&G Cedar Walls

26 Jan 2021 1 Comment

by inspirationalvillage in Natural Building Tags: , , , ,

All of the internal walls of our straw bale house are shear walls- meaning that they are constructed to be structural panels that can resist lateral forces acting on them. Lateral forces are those that are parallel to the plane of the wall, and are typically wind and seismic loads. In simple terms, lateral forces could push over parallel structural panels of a building were it not for perpendicular shear walls keeping them upright. In our case, the external structure of the 2×4 framing with bales stacked as infill for the walls, does not meet the structural requirements that protect against racking, particularly as we live in a high seismic event zone. Our structual engineer calculated that we needed 36feet by 8feet of shear wall, which amounted to all of the interior walls in our house. After building our walls with plywood on one side and a LOT of nails, as well as metal brackets from the foundation to the end of each wall and strapping over blocking in the ceiling rafters of the main room, we were good to go.

Mostly, these internal walls occur around the bedrooms, the utility room and staircase. The lower room of the house is basically one big open area, with shear walls separating the mudroom and utility room. We decided to buy some tongue and groove cedar and cover all the plywood with it, so we found a whole lift of 5inch wide cedar that was rather rough, meaning lots of knots (and knot holes) cracks, scrapes, scuff marks, discoloration, but in a general state of usability and affordable!

For the upstairs bedroom/hallway zone we pulled the best of the pile and used a clear natural stain product called Osmo as a finish. Luckily, with the solid plywood wall it really didn’t matter about the length of the wood. We finished the passage that connects to the upper house, which then took on a bit of a sauna feel, seeing as the ceiling is also cedar.

One of my original ideas for covering these walls was to use old pallet wood, and so to create a rustic, upcycled look by painting or colour staining the pallet material. This seemed like a good cheap option but ultimately we decided that it would be way too much work for the amount of wall we needed to cover. However I was still interested in adding a coloured stain to the cedar, which was all rather rough looking anyways. I experimented with creating multiple colour tones using blue, white, and grey water based stains from Saman, which was really easy to use and gave a nice palette. I prestained a whole bunch of boards, finished them afterwards with the same Osmo natural oil stain, and then assembled them on the walls from the mudroom, into the kitchen and then up the staircase on either side. Because the ceiling was made of uncoloured cedar, I decided to arrange the colour tones from dark at the bottom to light at the top, effectively fading into the clear boards before they hit the ceiling.

It was a fun experiment, and I think the blue, grey, and white palette creates a fun feature amoung the neutrality of the white/grey tone of the natural plaster which will cover the straw bale walls. I hadn’t really pre-thought the interior decor of this house, at least not as a priority, but as we move along into the finishing phases it is really fun to choose materials not only for their price and availability, but also for their attributes of atmosphere and tone.

We had a lot of this cedar leftover, so we also used it to finish some of the framed bathroom walls which create the toilet corner. Also, the we used it for the walls inside the utility room, which didn’t need to be beautiful, and despite the roughest boards being used in this room, looks surprisingly decent for a utility room.

Sculptural Walls

18 Jan 2021 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , ,

The wonderful thing about natural plaster, whether it be on a cob wall or on straw bale walls, is the potential for creative sculpture. Cob is even more so, as 3-D shaping can be accentuated into the depth of the wall, while with straw bale, the sculpture tends to be more on the surface (unless one wants to cut into the bales). In the bedrooms and the hallway, we added some sculptural elements before applying the final plaster.

In the hallway, we had rather lumpy bales, which I managed to make less lumpy with the rough coats of plaster, but there still were definite hills. Either side of the opening that leads to the upper level of the house were really rather bulgy because of the small cavity within the framing that we rather awkwardly stuffed mini-bales into. We decided to build up a kind of crossing of flowing ribbonish lines that would frame the sides of the opening and go up and over the arch we had built at the top. These lines also widened out around the staircase landing, and down the length of the hallway. We drew lines on the wall with chalk and then used water and some clay slip to moisten the wall before beginning to add the cob.

In the bedrooms, each of the kids wanted to design and create their own sculptures, so we have a bird above one window, and a tree in the corner of the other room. We built a small half moon shaped shelf in our room that is wide enough to hold a tea light candle.

The sculptures look so much more effective when the final plaster is done, but that will have to be another post! The additions of the sculptures definitely makes the work of the final plaster a lot slower and more tedious, but in the end, having these personal touches of creativity enhances the intimacy of the house. Too much sculpture, I think, can be visually overwhelming, so finding a balance between a nice smoothly finished wall and a specific placement of sculptural detail is good to consider. However, considering how much work it is to build a house in the first place, I think it is equally important to take the creative opportunities when they arise- and cob/natural plaster is a wonderful way to incorporate such creative moments.

Ceiling Layers

06 Jan 2021 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , , , ,

Getting the ceiling finished was the next important step, allowing for lights to be turned on so we could work past daylight hours, and enabling us to finish the walls with the final plaster. We were also keen to get the insulation above our heads as soon as possible, since the cold space of the addition was effecting our heating abilities in the finished part.

We did the same as before, adding 10 inches of rock wool insulation in two layers- R14 and then R22, giving us a total value of R36 above our heads. Since the strawbale walls are somewhere around R35-40, it made sense to match that in the ceiling, even though it is way above code for this area, is twice as much work to install, and ups the cost of the insulation dramatically. We did the same in the first build and are incredibly happy with the heating and cooling effect of the high insulation.

Because of the changing angles of the rafters, pieces needed to be cut on varying matching angles to stay held in place. It is not a pleasant job, with the configuring of ladders and the rub of insulation across one’s head and face, but at least the rock wool is less irritating than fibreglass, and eventually it gets done and then it’s… done!!

Covering the whole ceiling with the vapour barrier afterwards is way better as a two person job. Crinkled and oddly stapled plastic is just annoying.

We had acquired (for a fairly cheap price) 5inch wide tongue and groove cedar in 10 foot lengths, which needed to be stained previous to being installed- we used a natural product called Osmo which is a Geman product of natural oils and waxes. The wood is quite varied in colour tone and has a fair amount of knots, but none the less is a beautiful material to use and the oil stain made it even more brilliant in tone. Because our rafters run the width of the house (15feet) but curve the length of the space (40 feet) we needed to put strapping across the rafters so the ceiling boards could go up in the same direction as the rafters. Initailly we thought we could find ceiling material that would flex a bit with the curve, and so run lengthwise, but without incurring the high cost of custom milling something thin enough to bend, we had to change plans.

We had round LED lights to set into the ceiling, and of course other required things like the bathroom fan, stove fan, and smoke detectors to work around. Having the ceilings done really changed the whole space!

Creating the Living Roof

08 Dec 2020 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , ,

The addition of the straw bale house also has a living roof on both sections of the house. With 4 foot overhangs on the south walls and 3 feet overhangs everywhere else, the two levels of the new section total 2,000 square feet of roof over 1,100 interior square feet. Both roof lines have an element of curvature over the 25′ sections running east/west, and are otherwise flat over the 15′ depth.

We elected to go for a torch on roof underneath our soil, rather than the pond liner that we used on the first build. Over that, we laid out the vapour barrier plastic and then rolled out the drain mat. Also at some point, Colin fitted the flashing over the lip of the roof in one foot sections. We also added drain rock to the roof sections that are under the overhang, and made gravel beds around the drains that funnel into the downspouts so those areas don’t get clogged up with dirt and roots.

Next was the job of loading soil onto both levels of roof. We had our friend and neighbour come over with his excavator, and he loaded up his bucket and lifted it onto the lowest corner of the roof. More friends and neighbours then transferred buckets of soil up to the second roof, also at the lowest point, which was then spread out by more amazing friends and neighbours. Our depth of soil was set at 3 inches, calculated by our building engineer as the weight capacity for the roof based on the framing structure we used. The soil type we used was simply a mix of local sand and soil.

I waited until the fall to begin planting, as I didn’t intend to do any watering. Mostly the plants collected were from the first roof we planted, which was rather fully grown and could use some thinning. Many of the local sedums were lifted from the rocks on either side of the house, but also we were gifted with succulents thinned from crowded patches from friends’ gardens. There were spaced about 4 inches apart, with each variety planted separately inside linear sections that I imagined flowing across the curves of the roof, so that eventually when they are filled in, the colour diversity of the plants as well as the flowering times and colours will show up as differentiated sections. Eventually it may be too time consuming to keep the plants inside their own sections and succulent chaos will rule. Each following spring and fall I have added to the planting, thus, it has taken 2 years to get the roof covered, although not filled in. 2,000 square feet is a lot of plants.

Varieties include- ice plant, sempervivum (hens and chicks), sedum spurium, broad leaved stonecrop, oregon stonecrop, spreading stone crop, and various other sedums of unknown names. These two new roof sections are visible from inside the house, as each floor is stacked like a terrace down the bedrock, which makes the prospect of design and colour more interesting. Our first living roof is not at all noticeable except from a place outside and to the east of the front door, which is not a highly used space, and so the plants on that section are rather unattended, which suits us just fine. I am happy knowing that the ground space our shelters occupy is not being wasted on the birds and insects that might have otherwise foraged for food in it’s space. Each morning I watch as the chickadees tumble all over the roof, and in the summer the bees cling to the range of variously flowering plants. It is reassuring to know that we can continue to provide habitat for those that live side by side us in this world, while we clear hillsides and raise buildings in the pursuit of comfort.

Second Coat Plaster- Filling and Detailing

09 Jul 2020 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , ,

Second coat of natural clay plaster

The second layer of plaster for this strawbale house consisted of layers of fills and details to level out the lumpiness of the bales, which was a result of not doing any trimming to the bales once they were installed. This is because of the orientation of the bales as they were stacked into the framing of the walls, which meant they were string side out and unable to be cut. (See this post for details!)

Generally the same process for second coat plastering applies that I described during the building of our first straw bale house (see this post…). The main difference here is that I did a round of filling in the sections that were significantly dippy, (which was generally around the perimeter of the bales), letting that dry, and then covering the walls fully with the attempt to keep the plaster thinner in the lumpy spots and thicker in the indented areas. If the plaster is too thick in the dips, it will crack too much as it dries. The window edges also had burlap which needed to be embedded into the second coat to keep the plaster from pulling away from the wood, and there was some extra shaping needed in the curves of the window openings as we couldn’t trim the bales ahead of time into the curves we wanted.

We created wire forms above the hallway openings to create a curved archway, which then needed two coats of plaster. We also plastered over the interior bedroom walls that are constructed with 2×4 framing and rock wool insulation covered in metal lath. The bottom of the upper story exterior walls needed flashing installed, which we plastered into the wall also using metal lath.

The final purpose of the second coat of plaster other than protection of the bales, is to create a surface that supports the final clay plaster, especially at all the various edges. Once the windows and doors were installed, more plastering details were attended to- wherever the clay plaster meets window sills, frames, counters, kickboards, ceiling boards, etc., there needs to be a tight edge to within 1/4 inch for the last layer to fill. This can be finicky and involve a lot of unique areas that need extra attention and thought, and will be different in each build.

  • Window details- outside flashing
  • setting mahogany sills
  • metal lath for plaster
  • rough plaster up to the sill apron

First Plaster Layers

29 Jan 2018 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , , ,

With the baling done by September, our goal was to get the first layer of plaster on the bales before the winter rains began.  Plastering has to be done while the weather is still suitable for quick drying, since it is not advisable to have wet clay against the straw for long enough to develop mould.  The faster it dries, the better.  Because it was September when we started, we decided to make this first layer no thicker than 1/2 inch.  If it had been June, we would have taken the seasonal opportunity to fill the dips, which would mean much thicker plaster in some areas.  However, we will probably go around in the spring and add plaster just to the places that are dippy, so the next layer will begin to smooth out the surface of the walls.

Once the baling was done, there commenced the job of stuffing.  This entails going over each wall and looking for spaces that push through the bales, generally where one bale meets up against another bale.  All along the tops of the bales needed stuffing, and sometimes where the framing separates the bales.  Tucking in tight little twists of straw to fill these places becomes methodical but doesn’t take too much time.

After that, comes the messy job of applying clay slip to all exposed straw.  We collected waste clay trimmings from a pottery studio, and soaked it in buckets so it becomes soft and scoopable.  Then we mixed it with more water to dilute it to a thick chocolate milk consistency, using a paddle mixer.  It was thick enough to not drip very much off a dip stick.  I created a little wearable square bucket to hold the slip while I slapped it on the bales with a big brush and a gloved hand.  The bucket, equipped with old belts that went over my shoulders, could catch any excessive dripping and free up both my hands to massage the slip onto the straw.  It dries a much lighter colour of pink.

Then came plastering!  We used local clay from an excavation job on the island, pitt run sand, (also from the island) and all that straw we collected from the bale trimming.  We built a soaker pit from damaged straw bales, lining it with tarps and then filling it with clay and water to make it soft.  On tarps, we mixed 4 or 5 shovels of the soaked clay with 10 shovels of sand by rolling the tarps around and then foot mixing, adding water as we went to get a good consistency without allowing the mix to be sloppy.  Adding a few handfuls of straw (equivalent to 2 or 3 shovels)  soaked up a bit of water, so sometimes we would add a bit more if it became too stiff.  The test is to make a ball, and not have it ooze or slop, but also not have it be too stiff and crumbly.  The other test often comes from actually applying it, and becoming used to the ideal consistency while working with it.  The hands on experience of plastering generally becomes the best way to really learn!  We had to adjust things as we went- our ratios changed as we dug into our clay pile and found less high quality clay.  We noticed that our mixes were more silty, difficult to apply, and orange in hue instead of blue/grey.  It was a subtle change as we filled the soaker pit, but after a few mixes we realized we needed to amend our clay from a different pile we had saved.  (After so many years of natural building, we have all sorts of little and big piles of resources hanging around!)

The clay slip gets sprayed with water before applying the plaster, just lightly, not so that water runs down the wall but the slip turns darker in colour.  A handful of plaster is then smeared onto the wall with the heel of the hand, and massaged in so that it doesn’t peel back off.  Everyone finds their own method, but the important thing is that it isn’t too thick, or too thin, ideally the same thickness, and it doesn’t peel off! Our first group of plasterers were my son’s school class, a group of 24 kids ages 10-14.  They spent a whole day rotating in groups between mixing, plastering, and hiking around our part of the island while birding and geo-caching.  They got so much done!  We also had a visitor staying with us for two weeks, learning all the steps of plastering.  For the next month, we had a variety of friends and community people coming by for a few hours or a day to get their hands muddy on our walls.

Partially dried wall

We focused first on the north walls, and the places where there is less sunlight and wind movement.  Then we moved to the inside when the weather got rainier in October.  Luckily, the fall was generally sunny late into November, so when we finally got to the south walls, the warm sun was still shining most days.  We used a fan to help dry out some of the inside walls that weren’t getting much sun.

plaster over clay slip with insulation at the top covered with metal lath

Plastering the bales in this build was different than the last house we did because the bales were oriented differently- instead of placed like bricks and plastering the sides of the bales we have stood the bales up and plastering the faces of the bales, where the strings are.  In the last build, we trimmed the entire bale walls, shaping the curves of the windows and removing any shaggy straw, so the plaster went onto the evenly cut ends of the straw.  This time, we couldn’t do any trimming because of the baling twine, and the plaster went onto the length of the straw.  While we didn’t need to take the extra step of trimming, it was a little more challenging to apply the plaster.  The walls are more lumpy and will need some extra work in the plastering to get a nice smooth wall.  Smooth walls, of course, are a matter of aesthetic preference over function.  Maybe in the end we will incorporate more creative sculptural elements into our walls.

first coat plastered dried. Burlap will be plastered into the next layer of plaster.

This winter will be a time for these seed ideas to take root while the house building projects are on hold.  We can take some time to sit in the house and imagine the different possibilities for the next phases.  It can be frustrating at times to have to be patient, but often the results come with better decisions and a renewed sense of creativity following the flurry of building.

If you read all this and want to see more photos and more descriptions of plastering, please refer to my previous post on the last house we did~ Natural Plaster

Building Straw Bales Walls

11 Jan 2018 4 Comments

by inspirationalvillage in Natural Building Tags: , , , ,

The last two weeks of August kept us busy as we were finally ready to place the straw bales into the walls of our house.  This was a completely different process from the first part of the house that we completed in 2013, in which we stacked the bales like bricks around a traditional timber frame.  This time we constructed a regular stud frame to support the roof, placing the stud’s on 16″ centers to accommodate the width of the bales in between the studs.  The stud wall effectively disappeared as the bales were placed between them and stacked up end to end to the ceiling.  At the base of the walls were toe-ups which the bales would sit on- filled with drain rock and rigid insulation (which also included some rough electrical).

The straw bales were reported to be 18″ wide, 36″ long and 14″ deep.  However, as we discovered when we got them, they were more like 19 or 20″ wide, which didn’t work too well with our framing.  So we set up two stations where the bales were cut before we could place them.  The first was an electric chain saw placed in an Alaskan mill device so the chain saw could slide easily across the edge of a bale at a set height.  Then the bale would get notched~ a second station in which a jig holding a grinder with a chain saw blade would carve a 4″ wide notch down the center of each side of the bale.

grinder jig for notching the sides
bales guides on the underside
chainsaw jig
both stations set up
toe-ups on the concrete slab, including rough electrical
toe-ups on the plywood subfloor with rough electrical

If we needed any specific length bales to fit into smaller spaces, which happened all along the tops of each wall, we would manually resize the bales first, then send them to station number one.  Eventually a system of tagging the bales with their length, as well as having a written order of the needed sizes on a piece of paper meant that when they were ready to go into the walls, we could just refer to the paper and the tags to put them in from one side to the other.  To make mini bales, baling needles, baling twine and a measuring tape are needed.  Thread the needles with twine, poke them through the bale at the needed length and in the same place as the original twine, pull one end of each through and then wrap the other end around the bale to tie them together… tightly!  Then cut the original twine.  Save those pieces for making other smaller bales.

An integral piece of equipment for getting the bales in was the CRAZY CARPET!!  It was quite difficult to shove the bales in, as we had to place the bale in against the open stud, place a crazy carpet against the straw of the bale on the other side, force the width through to the other side of the stud, then remove the crazy carpet.  Depending on the density of the bale, we had stakes to push with, mallets to slam with, and 2×4 scraps to persuade with.  Depending on the height, we could karate kick or shoulder check them as well.  The higher bales proved more difficult as we were working on ladders.  We had to be systematic in working right to left, (or left to right) along a wall as shoving a bale into a space with bales on both sides was pretty much impossible.  This meant that we had to be prepared with all the odd bales as we went~ we couldn’t just place all the easy ones first!  It also meant that things slowed a little sometimes while custom bales were made.

crazy carpets helped the bales slide into place
pushing the bale into place
sometimes, the tight fit called for various forms of persuation

We inadvertently made a lot of cut straw byproduct.  The chain saw station produced 9 large garbage bags and two large mountains of 2 inch straw pieces.  The notching station made 5 large garbage bags of finely chopped straw.  We kept the piles separate, as the longer straw will be perfect for the first two coats of plaster, and the fine straw will be great for the final plaster.

The whole process called for continual creative problem solving.  The stud framing made for some very awkward spaces, especially around window bucks and in the corners.  We sized the window bucks to glass that we already have, otherwise we may have changed the sizes to fit evenly between the studs.  We ended up making a lot of 8″ or smaller bales and flipped them lengthwise in the spaces.  The corners also had a lot of these small bales stacked up, and we placed extra 2×4’s to hold them in place on the outside, and also to secure expanded metal lath around the outside corners so we could hand stuff those areas with loose straw.  We considered making forms and stuffing the corners with light clay, but the lateness of the season made us worried that the clay might not dry fast enough.  We will apply the clay plaster right over the metal lath, which is secured to the wall using zip ties attached to the baling twine of the bales in place.

the awkward corners
4 small blaes
small bales in place
the rest of the corner space stuffed with straw and held with metal lath

The other awkward area is where the bale walls meet the main rafter on the south and north walls.  The rafter is made of two 2×10’s cut into a curve and joined together, and arches over the center of the bales, above the stud’s.  The bales come in underneath this rafter, leaving a 10″ space before the soffits and interior ceiling.  We cut strips of insulation and fit it on either side of the rafter, and used the metal lath to cover it and join in the with bales, so the plaster will extend up to the roof over the lath.

finished bedroom walls
bathroom vents inset into the bales
half baled. The wide rafter got covered with insulation inside and out
the space at the top of the curved wall gets filled with insulation and covered with metal lath

We ordered 350 straw bales from the Saanich Peninsula last August (2016) which is a mere 20km away.  Optimistically, we hoped we could get them in that fall- however, as our time line stretched into the winter, we resorted to storing them under a large tarp until the spring, when we moved them into the house in June after we completed the concrete slab floor.  There were many damaged bales, and after a huge sorting process of fully damaged, partially damaged, mildly damaged and good as gold, we ended up with about 250 in various piles.  We estimated that we might have needed to purchase up to 25 more, but in the end, we used every last one that was deemed good enough right to the last space.  Luckily, our enthusiastic gardening community purchased our damaged bales for their gardens.

So many of our friends came out and helped with the process during the two weeks that it took to get all the bales in.  It is always so humbling to have community members take time out of their own busy lives to volunteer for an afternoon or a day of slamming bales into our walls, or tying up smaller bales, or running the grinder or chainsaw.  The swimming pond became the ultimate spot for breaks, and many great conversations and smiles and eating of fresh fruit filled up the moments between hard work.  It truly made the daunting task of building our walls so incredibly enjoyable.  Thank you again to everyone who helped out!  We feel so supported and blessed.

Sub-layers of the Floor

12 Dec 2017 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , ,

Getting the sub-floor completed adds a whole new level of progress, allowing the next stages of the build to continue with greater ease.  The main floor of our straw bale addition went from an 18″ deep mucky clay hole to a finished concrete surface that we can directly lay the final tile floor on.  Here is an outline of the different layers and the process of putting them in.

1.First we filled the bottom with 6″ of gravel to cover the 4″ drain tile that runs under the house (as we are on a hillside with many springs weeping from the bedrock) and will allow any water that gets under the house to drain away easily.

2.Preliminary plumbing- all the plumbing is laid out across the floors and supported by the drain rock to create a slope across the main floor towards the septic.  The bathroom, utility room and kitchen water fixtures all come together into one 4″ main drain that exits to the east where it will end up in a septic tank/lift pump to take up to our existing septic field.

3.Insulation layer- placed directly onto the drain rock, we used whole bags of perlite that we laid out tightly side by side and gently flattened (by foot) to create a solid layer of 8″ insulation, which gives a R value of 25.  We chose to use perlite because it is an amorphous volcanic glass that has a relatively high water content, typically formed by the hydration of obsidian. It occurs naturally and has the unusual property of greatly expanding when heated sufficiently. (Rigid foam insulation is the usual building material for this use, but it is made of polystyrene.)  In some places we had to customize the bags by emptying them partially to help fill the spaces which were not the same shape as the bags.  Here is a link to the Perlite Institute which has complete information on using perlite for construction insulation below slabs – https://www.perlite.org/library-perlite-info/insulation-perlite/Perlite-underslab-insulation.pdf

4.On top of the perlite bags we put 2″ of sand, filling the spaces around the bags and then compacted the whole floor.

5.The next layer we put down on top of the sand was the 6mil construction poly vapor barrier and then laid out the metal rebar mesh that would be pulled up into the 4″ slab.

6.And the last thing we had to do before pouring the slab was attach the hydronic infloor heating Pex tubing to the metal mesh.  It is best to consult someone about the layout and spacing of your tubing as it will greatly affect the heating potential of your hydronic system.  It is also important to use sleeves to cover the Pex tubing where ever it comes up through the slab.

bathroom
utility room
kitchen into the utility room
main floor
entrance room

7.Once everything was ready we ordered the cement and Colin worked with a crew of 3 others to pour the slab in less than 3 hours.  The slab is flat, but not super finished as we will be putting 12″ mexican tiles down as the finish floor surface on the lower floor of the house.

The upstairs currently has a plywood subfloor.  We haven’t yet decided what we are going to use to finish it.

bathroom- exposed is the box with water lines for the bathtub, as well as venting and drain openings



GROUNDWORK- Building with Straw Bale

14 Jun 2017 Leave a comment

by inspirationalvillage in Natural Building Tags: , , , , ,

Last year we were approached about being interviewed for a short documentary about building with straw bales.  We are excited to share our story as well as our reasons for choosing straw bales and other natural materials to build with, and it is delightful to be among other home owners and builders who share the same sentiments about the homes we create.  We are currently on this journey once again, and the reminder of why we are doing this is truely valuable in the face of the various challenges that manifest during such a large and complex project.

Our wood working shop is also featured in Episode 1-Building with Cob.

Other episodes made are Episode 2- Building with Timber and Episode 4- Building with Rammed Earth.

*Made by TELUS Optik Local~ supports compelling, original stories told by filmmakers from BC and Alberta by providing production funding, training and exposure to new audiences.

Framing~ The Bones

03 Feb 2017 3 Comments

by inspirationalvillage in Natural Building Tags: , , , ,

roofDespite a very frigid December (for the west coast), we managed to continue building just in time to get the roof sealed up and water tight before the wet west coast winter starts in.  Here is a brief account of the structure of the frame, and the way in which we are going to insert the straw bales.

first wallOur decision to use a stick frame method as opposed to a timber frame (as we did for our first house) was mostly a compromise of time and money.  Stick framing is super fast, and we hired an experienced framer friend (thanks Danny!) to work with Colin and his design with the curved roof lines.  Dan helped Colin put his drawings into a model of the house in Sketch-Up, a computer program for architecture, so they could get accurate measurements for all the framing, especially where the lengths of the 2×4’s change subtly with the curves.  The curved roof was the main reason to use stick framing- it was eaiser and faster to frame the studs under the curved beam which is essentially two 2×8’s (cut out of 2×10’s to get the curve) overlapping all along as one continuous header the length of the roof- this also alleviates the need for headers over doors and windows.  Framing started on December 2, and was done in a month, despite a week break over Christmas.  We still have some interior shear walls to frame, as we were focused on the walls that were necessary for the roof.  Also, window and door framing will be cut in sometime in the spring.  Many people have asked us about how 2×4’s can be the only thing holding up a living roof, but the engineer says they are strong enough with the 3×8 beam on top.

The exterior walls are framed to 18 inch centres, as we will be standing the bales on end between the 2×4’s.  A lengthwise notch will be cut down each side of the bales to fit them snug around the framing, and thus hide the wood frame down the centre of the wall of bales.  The new international building code for straw bales has published findings that the bales placed 14 inches wide in the wall is the same insulation value as their 18 inch wide option, due mostly to the orientation of the straw.

All of our interior walls are shear walls (plywood on one side, and attached to the foundation directly), as required by the engineer, since our exterior walls are straw bales and not considered to have any shear strength.  The shear strength is the load that an object is able to withstand in a direction parallel to the face of the material, as opposed to perpendicular to the surface.  In walls, it is usually plywood or cross bracing that provides the shear strength, preventing any side to side movement.  So our internal walls are (or will be) sheeted with plywood and continue down to the foundation.  At the foundation, the walls are secured with hold downs to resist any upwards movement in an earthquake.

The roof is standard construction with 2×4 strapping over 2×12 joists, though in the more curvy parts of the roof we had to use double layers of 1×4.  On top of the strapping is standard 1/2″ plywood decking and a 4″ curb all around the edge to keep the dirt in.  We decided to go with a double layer torch on roof membrane this time, which should easily last a very long time, longer than us… The roof was torched on in early January and we are now secure and dry for the rest of the winter.  Colin is back to work in his shop for the next few months to get caught up with his ThujaWoodArt projects, but come the spring we hope to do the infloor heating and plumbing under the concrete slab on grade subfloor, and prepare for installing the straw bales in the summer.  We will be offering workshops for installing the straw bales and plastering in the summer through the local Heartwood Folk School, check their website for more info as we get closer!

Phase 2- Continuing the Build

06 Dec 2016 Leave a comment

by inspirationalvillage in Natural Building Tags: , , ,

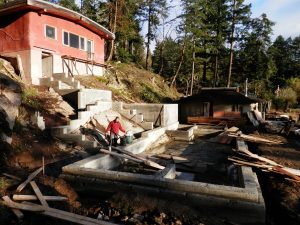

foundationFoundation–The basis on which something stands or is supported; a base.  The basis or groundwork of anything.  An underlying basis or principle for something.

An overview–  The previous straw bale house chronicled on this blog was the first section of two parts of our whole building plan.  The first half is designed as an in-law suite for my mother, with a shared art studio space, and this second half that we are just starting will be bedrooms for us and our kids and a garden level living space.  The 3 acres that we have contains a lower open feild where the pond and gardens are situated, a forested upper area, and a sloping face of bedrock in between.  Since we don’t want to clear the forest or use up valuable growing space, we have designed the house to be built on the rock.  The first half sits at the top and overlooks the pond and gardens, and the other half is separeated into two floors, each built like a terrace from the garden level up to the existing section and attached with an enclosed walk way.  The total square footage will be about 2,000 square feet.

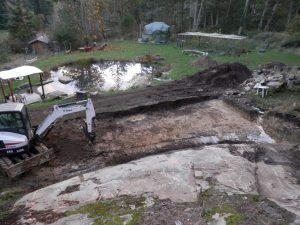

excavatorWe are building with as much attention to natural materials as possible.  We are using sustainably sourced or salvaged resources whenever we can.  The walls in this half will be straw bale with clay and lime plasters, with a living roof, just as in the first half.  We are aware of the imprint of building houses these days and the huge amount of toxic off gasing that occurs with many conventional materials as well as the chemically saturated waste that ends up in the landfill.  However, since we are building within the boundaries of building codes and needing to meet the requirements of engineers, architects and inspectors, there are just some things we can’t avoid.  Natural building can be a tag that is placed on our house as a whole, but I think it is important to state that not every aspect of the house is “natural”.  Such as, for example, the foundation.

bottom level forms
drilling 142 holes
lots of rebar
pumper truck
pouring the forms
forms filled

The second half-  There are not many places in Canada where you could begin to build a house in November.  Of course, we didn’t plan to start at this point, but the process of aquiring the permit took longer than we expected.  We learned from our previous build that everything will take longer than expected.  Amazingly, the weather has been quite co-operative, allowing us to complete the form work in one week, and giving us the sunniest day of the month on the day we scheduled the pumper truck.

There is not much about the foundation that would fall into the “natural” category.  We hired an excavator to dig the footprint, and rented a large rock drill with a giant, gas powered compressor to drill out 140 holes in the bedrock, each ranging from 16″ to 24″ deep and filled with concrete grout and rebar.  We purchased a lot of 2×10 and 2×4 lumber as well as some plywood for the forms that we hope to re-use again in the framing if possible.  We set five runs of rebar inside the length of the footings and stem walls with a 1′ grid of rebar in the higher walls and snap ties every 2 feet, and placed knockouts of pvc in the footings wherever we need drainage, septic, and water runs.  We hired a concrete pumper truck and 3 truck loads of concrete.  We set anchor bolts every 3 feet in the top of the concrete to attach the framing.  The engineer is happy, the geo-tech is happy, the building inspector is happy.  This is not terribly extraordinary in the world of regular construction, in fact it is quite standard and even a “small” job.  To me it seems rather complex, requiring a lot of effort and money to create forms that become deconstucted and a structure that is largely unseen in the end.

However, this crucial first step is the foundation upon which we will begin to build up our visions of a beautiful, healthy, comfortable, sustainably functioning and lovingly hand built family house.



Bales of Insulation- A Full Report

11 Dec 2013 5 Comments

by inspirationalvillage in Natural Building Tags: , , , , , , ,

exterior bamboo piningWe are heading into our third season of winter in our straw bale house.  Hard to believe really – I so clearly remember the feeling that the house would just never be done – but there you have it, two years later we are really beginning to see the way the design and materials of the house perform through the seasons.  Last winter was a relatively mild winter in an already mild climate zone, and the winter before we didn’t really move in fully until January, so getting a sense of how much wood we might burn and how much our heating/electrical costs would be throughout the winter months has only just begun to be obvious.

winter sun bouncing off the pond

winter sun bouncing off the pond

Our three forms of heat are the wood stove, hydronic in-floor heating, and passive solar orientation.  The winter sun arches across the sky, sending it’s light and heat into our east and south windows (when it is out!) staying entirely above the top of the trees of the ridge across the valley of which we face.  At certain times of the spring and fall, the light of the sun bounces off the pond below us which lights up our ceiling with ripply light- an unplanned bonus!  We have an earthen floor in the front room, which noticeably absorbs the warmth and retains it into the evening.  The wood stove sits on a two foot tall stone hearth and is backed by a short cob wall, both of which absorb sun heat as well as stove heat.

In floor heating tubes covered by 3 inches of cob sub floor

In floor heating tubes covered by 3 inches of cob sub floor mass

Our in-floor heating is divided into two zones, one for the bathroom and north side of the house, and one which circulates the front south room.  They are set to come on if the temperatures of the rooms drop below 19 degrees celsius.  The front room heating has never come on, and the backroom zone clicks on early in the mornings of the coldest days of winter.  The tubes are embedded under 3 inches of cob, which then also retains heat for longer.

We primarily rely on the wood stove for immediate heat.  This year we lit our first fire on November 20th, and mostly because we were nostalgic for that first cozy fire.  We kept the fire going for about an hour, and then we were too hot.  We have found that we really only need to light a fire around four or five o’clock, depending on the temperature outside, and let it die down around nine, otherwise it gets up to 25 degrees!  upraised wood stoveWe have been having a cold spell right now, where temperatures fall towards -2 or -3 degrees at night (oh my!), and then we might light a fire at three in the afternoon.  Our evening fires keep the house sitting at 20 until late the next day.  Last year, this translated into our using less than half a cord of fire wood in the whole season.  We have an older style stove that doesn’t have any of the newer reburning/efficient innovations, and our space is 920 interior square feet.

The southerly exposed room of the house is lowered by two steps, (which is where the wood stove is) and so the heat tends to naturally move towards the north side of the house as it attempts to travel upwards.  If we leave one window open in the loft of the back room, the heat is pulled even more into that space.  Another design feature of the walls themselves are the wrap- around construction – meaning that the bales are continuously wrapped around the outside of the timber frame, leaving no thermal breaks except where there are doors and windows.  We used double pane thermal glass with argon gas and a low-E squared coating.

west side, south side

south and west side- wrapping bales, sun exposure, and roof overhang

I love the heat that a wood stove gives, but I am not excited about the amount of wood and trees that need to be burned.  It is not entirely a “clean” way of heating.  Eventually we will have three wood stoves on our property – this one, one in the work shop, and one in our addition to this house.  Luckily, Colin’s business of crafting furniture from salvaged red cedar means that we have a lot of  great kindling and fire wood just from his waste.  I am comforted to know that we can potentially heat our spaces for years on just a few dead or cleared trees.  We took out a few trees when building the house, and haven’t even started using them.  This fall, I chopped almost two cords of wood from those trees, which will potentially be three years of wood.  The less wood we go through the better – we even find that turning on the stove to make dinner warms the space efficiently some nights.  Certainly, if we have friends over in the evening, lighting a fire usually leads to opening some windows.

Straw bales reportedly  have an R value of 30-60.  The building code requires that insulation needs to have an R value of 20 in walls.  We have experienced this amazingly efficient quality of insulation, in the winter and in the summer, when the inside of the house is cool and refreshing on hot days.  With a 3 foot overhang of the roof blocking out the sun’s light in summer and the rain in the winter, I am ever more convinced that straw bales are a fantastic way of providing natural temperature control in any climate.
